Accent GSI Coupe L4-1495cc 1.5L DOHC MFI (1998)
Vehicle Speed Sensor: Customer Interest
A/T - Fail Safe Mode/Erratic/Hard Shifting/DTC's Set
Group
40 - TRANSAXLE
Number
03-40-022
Date
12-2003
Model
ACCENT 1996-2004,
ELANTRA 1996-2000 AND
TIBURON 1997-2001
Subject
AUTOMATIC TRANSAXLE PULSE GENERATOR DIAGNOSTIC TROUBLE CODES P0717 & P0722
This TSB supersedes TSB 01-40-006-1 to update the repair procedure.
DESCRIPTION:
An improperly functioning pulse generator on a 1996-2000 Elantra, 1997-2001 Tiburon or 1996-2004 Accent may result in the following conditions:
NOTE
These conditions may be intermittent and difficult to duplicate:
^
Diagnostic Trouble Codes:
^
P0717 - No pulse generator-A signal
^
P0722 - No pulse generator-B signal
^
P1624 - MIL-On request from TCM
^
Third-gear "Fail-Safe" condition and/or "Check Engine" light on
^
Harsh, delayed or erratic 1-2 upshift
^
Harsh or erratic 2-1 downshift during light acceleration Vehicle "bucking" and/or hesitation
REPAIR PROCEDURE:
1.

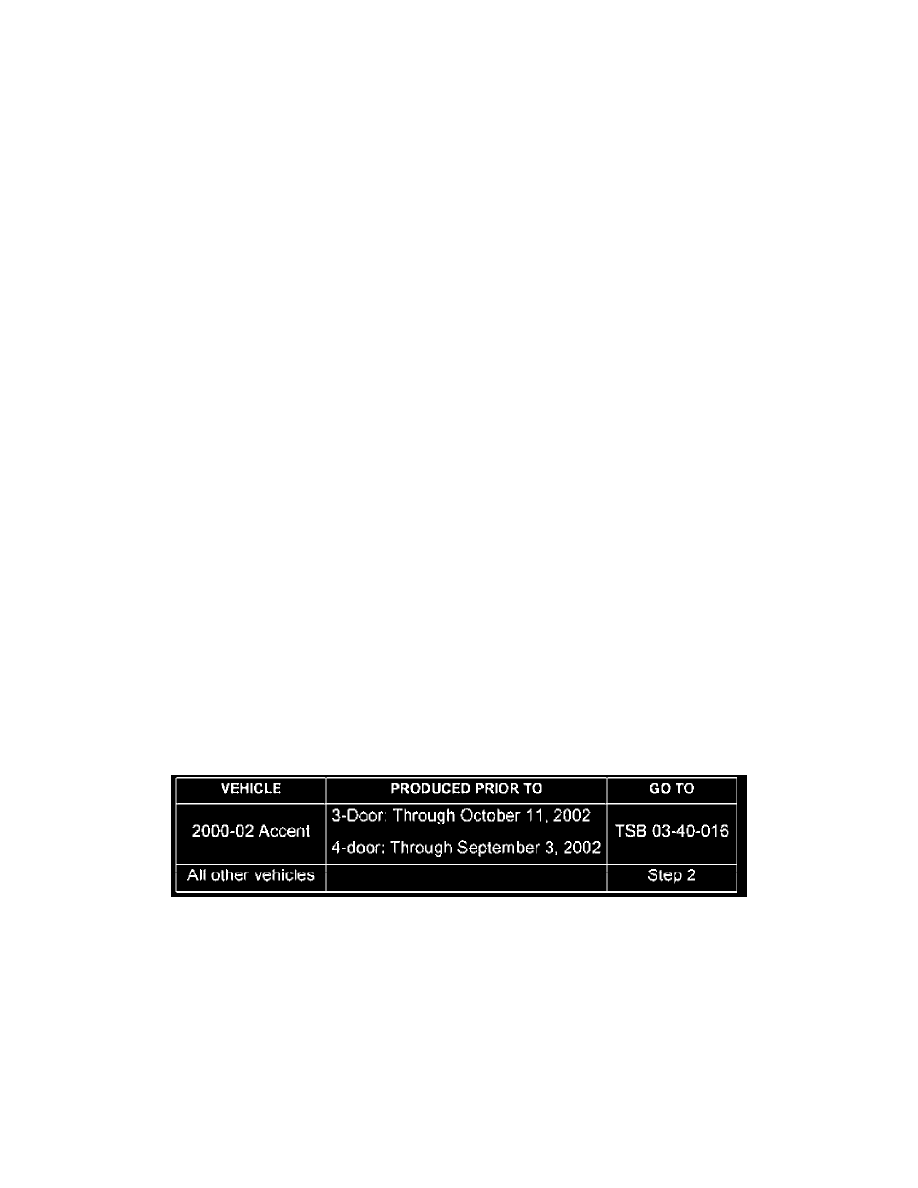

Follow the procedure shown below according to vehicle and production dates shown.
