Engine Control Module: Diagrams (page 3 of 4)

Make

Hyundai

Model

Accent GSI Coupe

Engine

L4-1495cc 1.5L DOHC MFI

Year

1998

Section

Relays and Modules - Powertrain Management › Relays and Modules - Computers and Control Systems › Engine Control Module

Relays and ModulesDiagrams · page 3 of 4

Engine Control Module: Testing and Inspection

ENGINE CONTROL MODULE (ECM)

Check the internal control module ROM/RAM error.

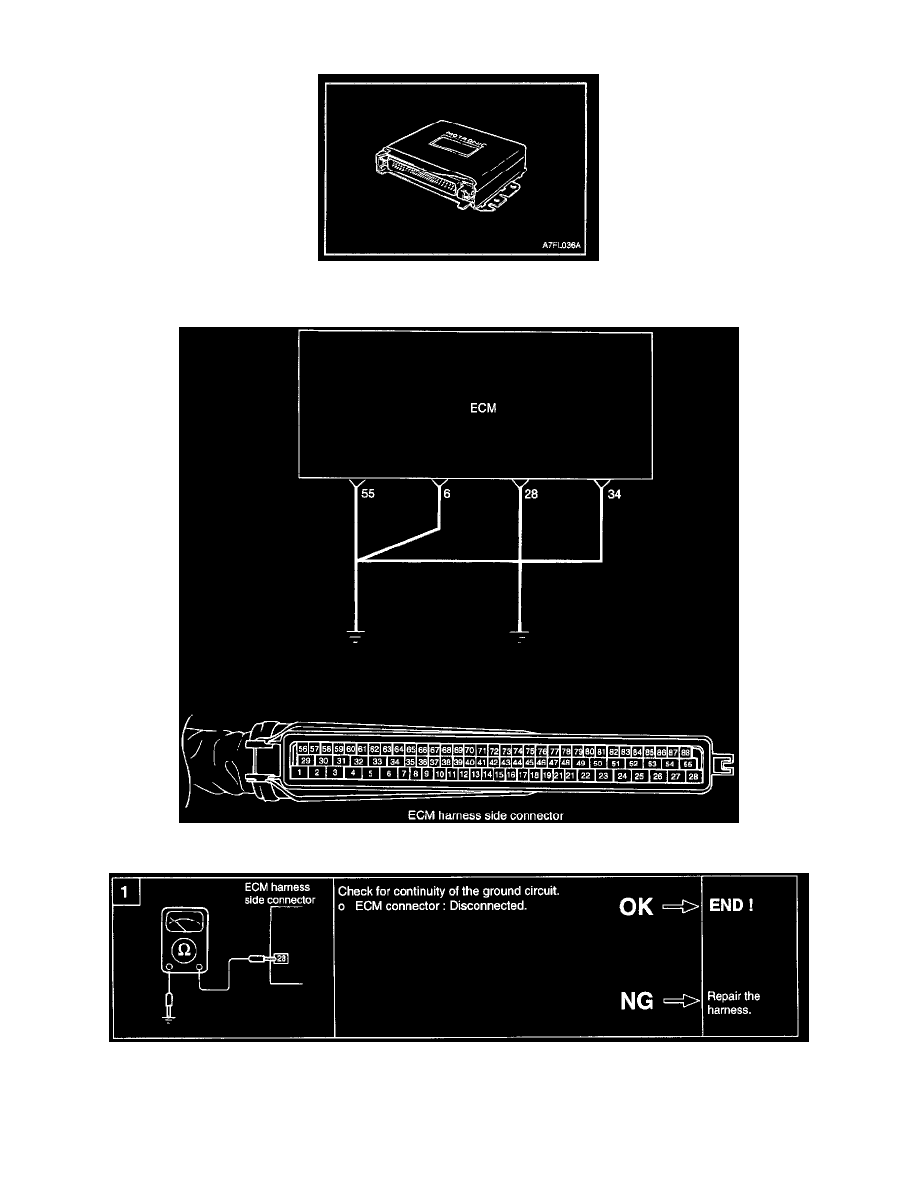

CIRCUIT DIAGRAM

HARNESS INSPECTION PROCEDURE
