Shift Interlock Control Module: Testing and Inspection

CONTROL MODULE INPUT CIRCUIT

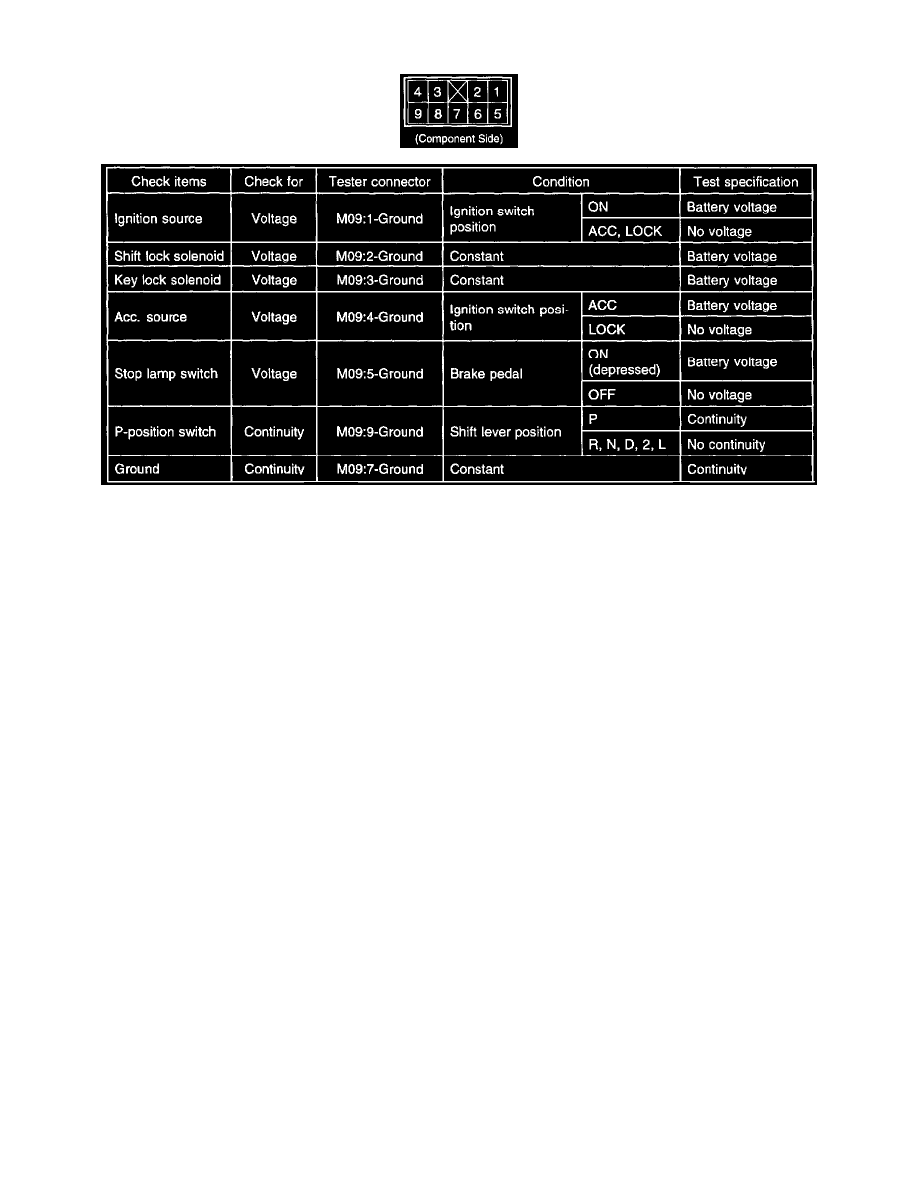

Disconnect the 9-pin connector from the control module and inspect the connectors on the wire harness side as shown.
