Accent GSI Coupe L4-1495cc 1.5L DOHC MFI (1998)
Ventilation Switch: Testing and Inspection
1.
Connect the vacuum tester to back color hose for the fresh/recirc control switch.
2.

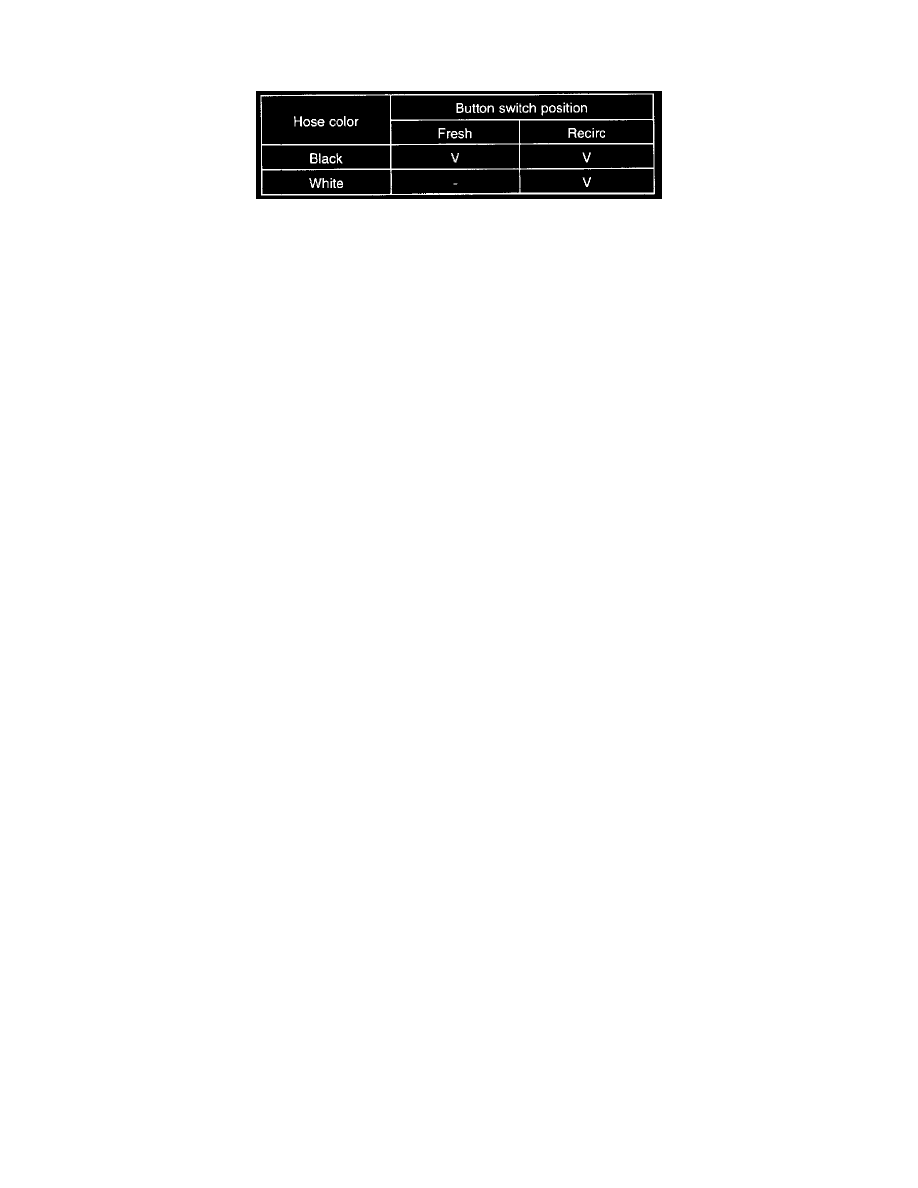

Check for vacuum hiss and air flow as shown.
