Accent GSI Coupe L4-1495cc 1.5L DOHC MFI (1998)
Alternator Brush: Service and Repair

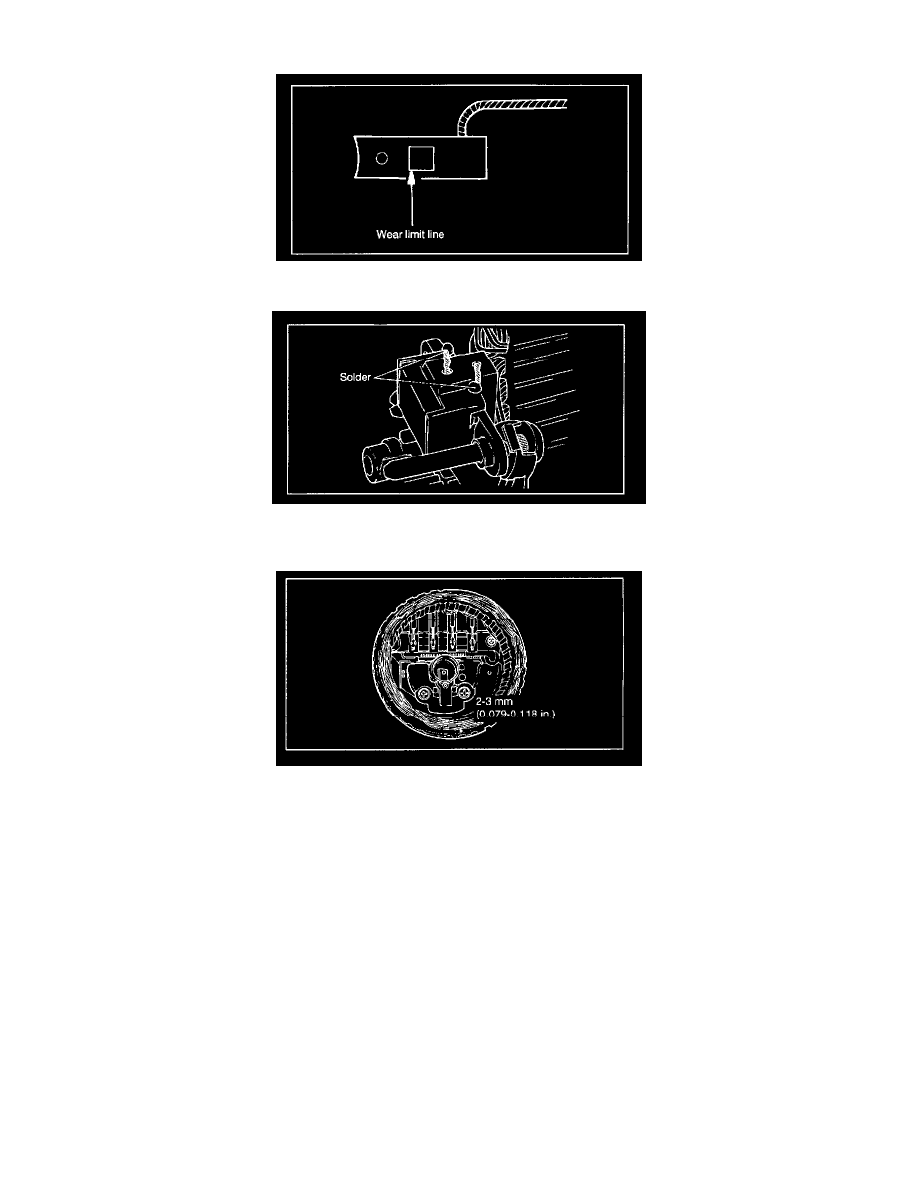

Replace the brushes if they are worn to limit line.
1. Unsolder the pigtail and remove the old brush and spring.
2. Install the brush spring and a new brush in the brush holder.
3. Insert the brush to where there is a space 2 to 3 mm (0.079 to 0.118 in.) between the limit line and the end of the brush holder.
4. Solder the pigtail to the brush holder.
