Accent GSI Coupe L4-1495cc 1.5L DOHC MFI (1998)
8.

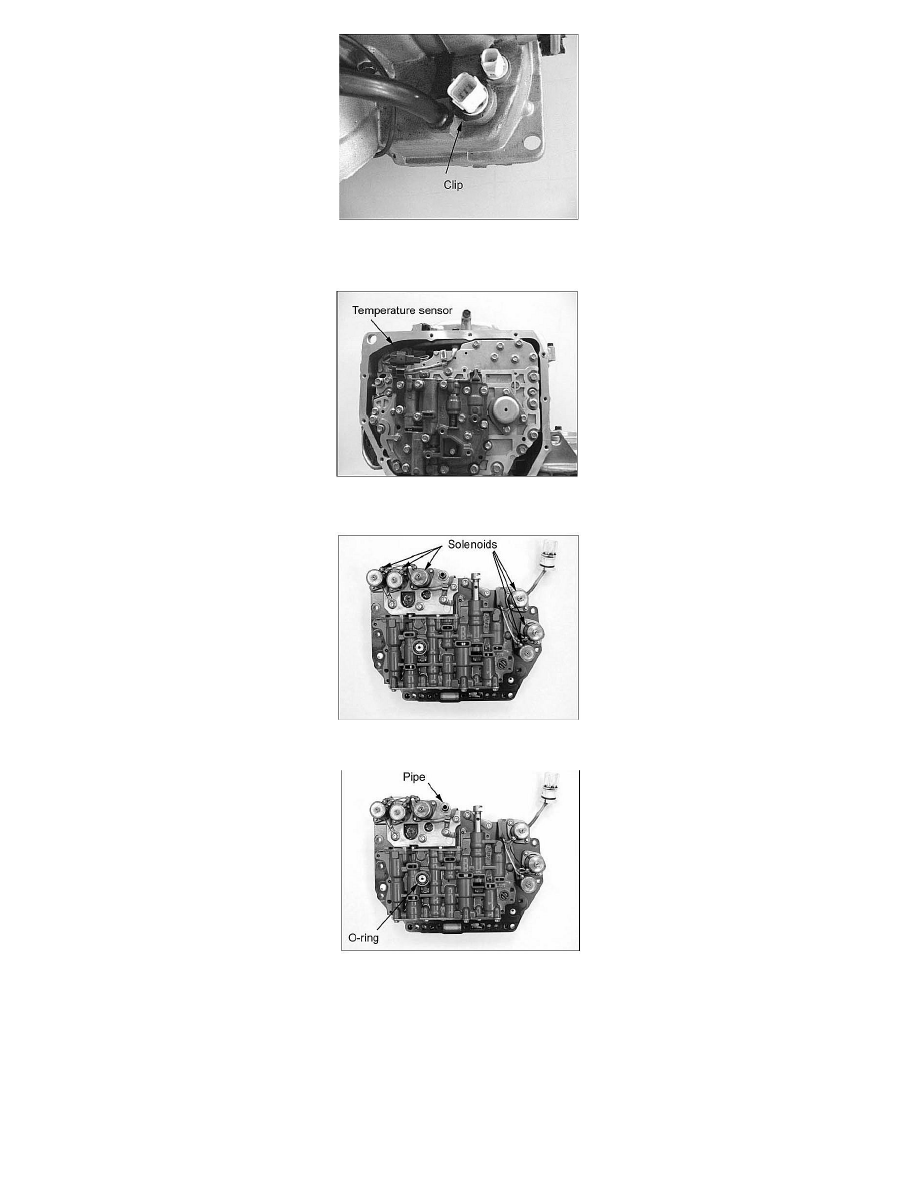

Using a screwdriver, remove the clip and push the solenoid connector into the transaxle case. (On earlier models, use two screwdrivers to push the
tabs of the solenoid connector inward, then push the connector into the transaxle case).
9.
Remove the oil temperature sensor from the bracket. Remove the oil filter. Remove ten 10 mm bolts and remove the valve body.
10.
Remove the solenoids and carefully reinstall the new solenoids in the same location. Tighten the bolts to 3-4 lb-ft (40-60 kg.cm).
11.
Confirm the 0-ring is installed on the top center of the valve body and the valve body pipe is installed on the top of the valve body.
