Heated Glass Element Switch: Testing and Inspection

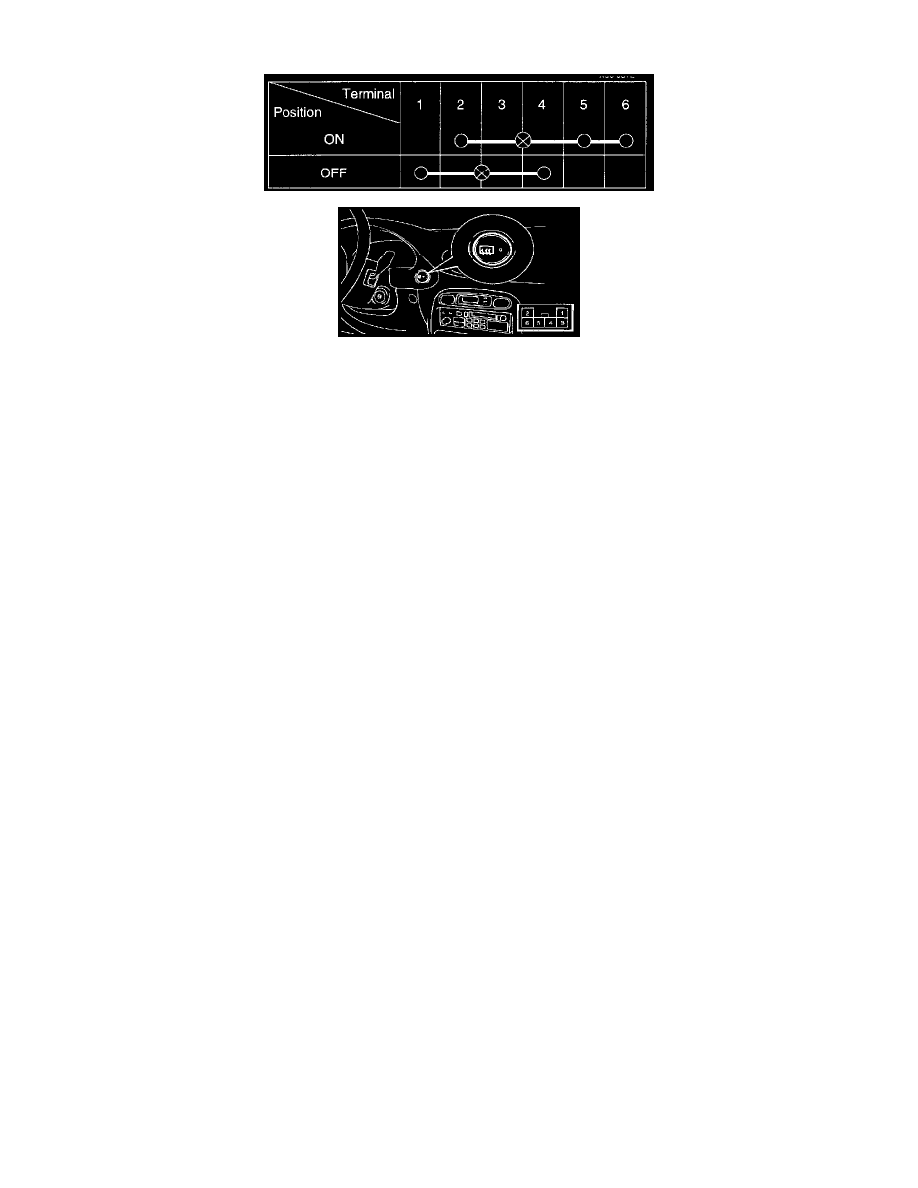

Disconnect the heated switch connector from the wiring harness. Operate the switch, and check the continuity between the terminals.
If continuity is not as specified, replace switch.
