Azera V6-3.3L (2007)
Brake Pedal Assy: Adjustments
BRAKE PEDAL BRAKE SWITCH ADJUSTMENT

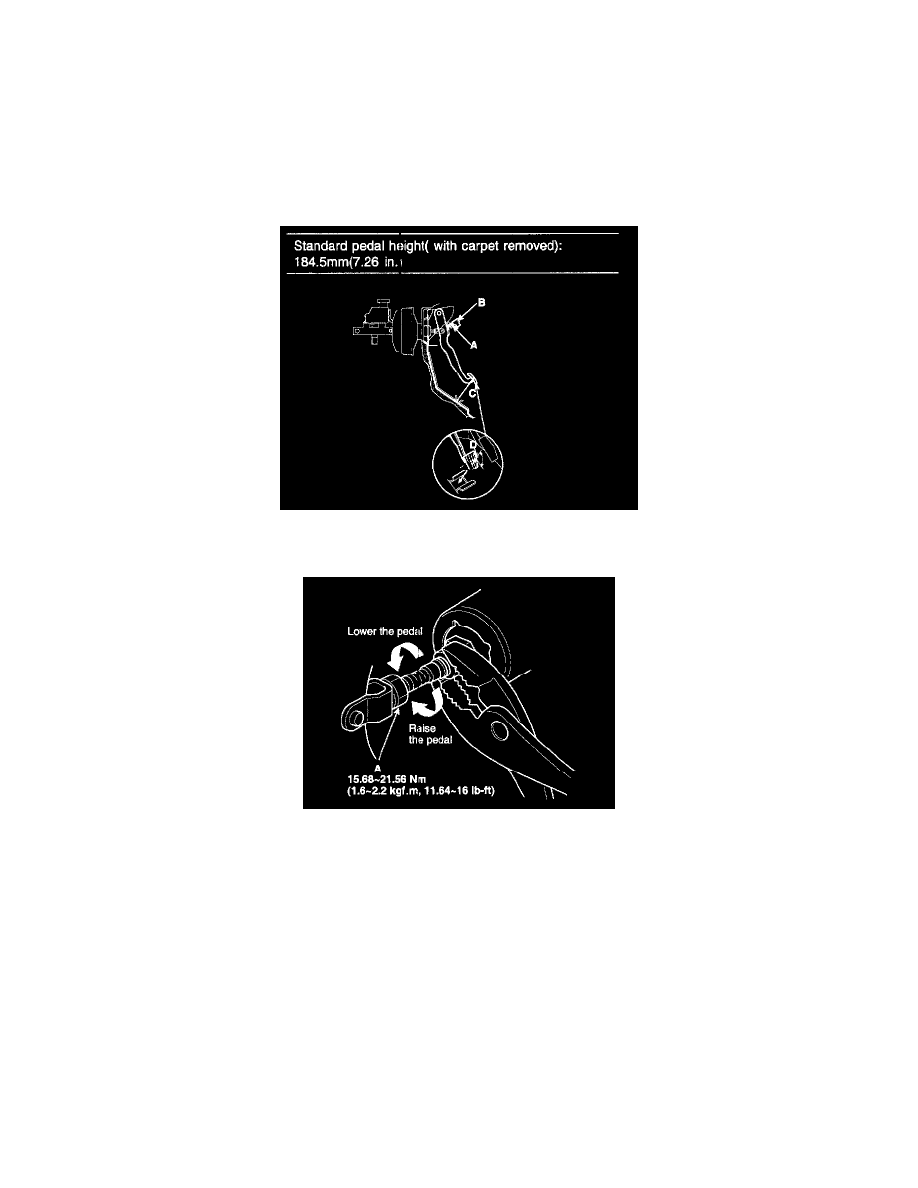

PEDAL HEIGHT
1. Disconnect the brake switch connector, loosen the brake switch locknut (A), and back off the brake switch (B) until it is no longer touching the
brake pedal.
2. Lift up the carpet. At the insulator cutout, measure the pedal height (C) from the middle of the left-side center of the pedal pad (D).
Standard pedal height (with carpet removed): 184.5 mm (7.26 in.)
3. Loosen the pushrod locknut (A), and screw the pushrod in or out with pliers until the standard pedal height from the floor is reached. After
adjustment, tighten the locknut firmly. Do not adjust the pedal height with the pushrod depressed.
BRAKE SWITCH CLEARANCE
Screw in the brake switch until its plunger is fully depressed (threaded end (A) touching the pad (B) on the pedal arm) then back off the switch 3/4
turn to make 1.0 2.0 mm (0.04 0.08 in.) of clearance between the brake switch connector. Make sure that the brake lights go off when the pedal is
released.
