Entourage V6-3.8L (2009)

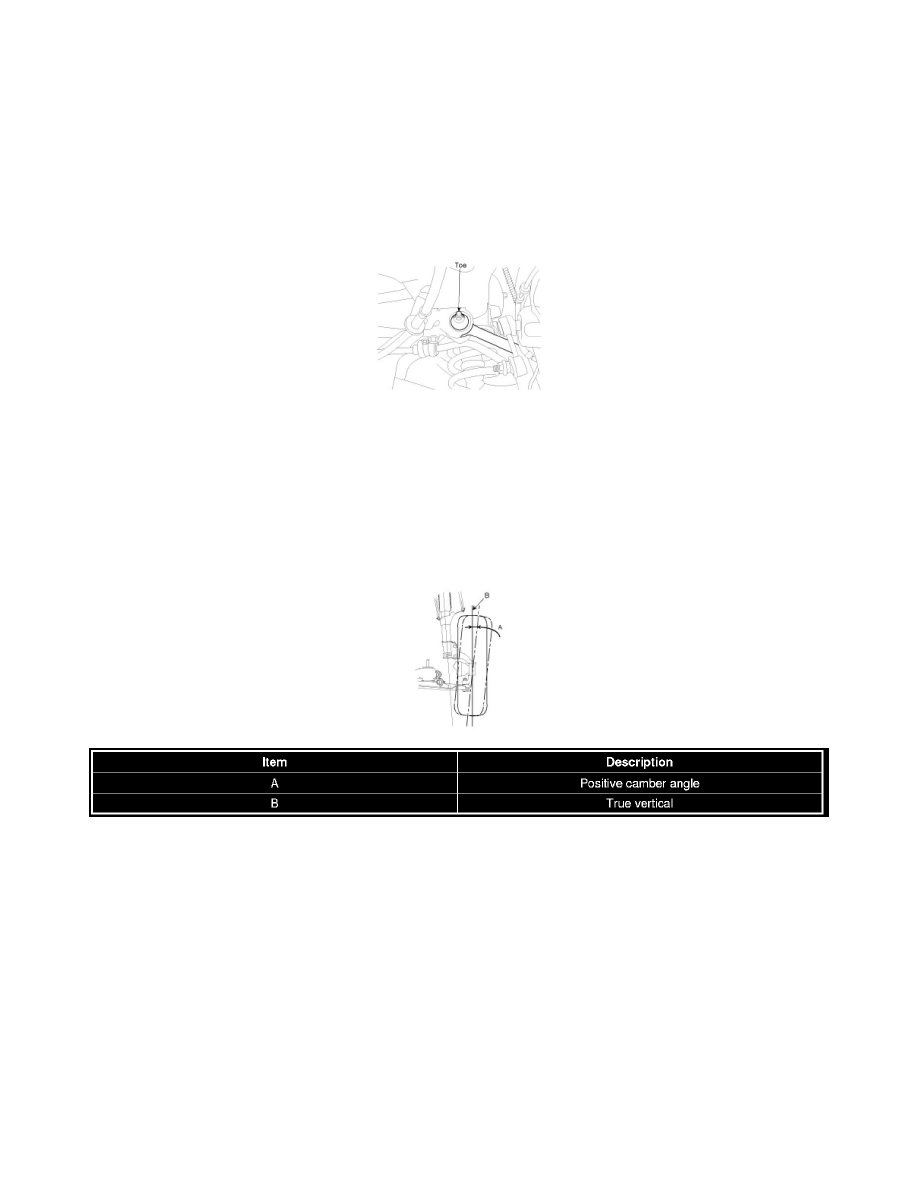

Adjust the toe-in by turning the cambolt of the assist arm.
Left cambolt : Clockwise -> toe-in
Right cambolt : Clockwise -> toe-out
The variation of toe by a rotation of the cambolt :
About 3.2 mm (0.126 in)
CAUTION:
-
Each toe should be within ±1 mm (± 0.039 in).
If the difference between right and left is not within +2mm (0.079 in), repeat adjustment.
-
After adjusting the cambolt, tighten the nut to the specified torque.
Specified torque
90 - 120 N.m (9 - 12 kgf.m, 65.1 - 86.8 lb-ft)
Camber
[Front]
Camber is the inward or outward tilting of the wheels at the top.
When the wheel tilts out at the top, then the camber is positive (+).
When the wheel tilts in at the top, then the camber is negative(-).
Standard value : 0° ± 30'
Difference between right and left angle is within 0° 30'
NOTE:
Camber is pre-set at the factory and doesn't need to be adjusted. If the camber is not within the standard value, replace the bent or damaged parts.
[Rear]
Standard value : -20' ± 30'
Difference between right and left angle is within 0° 30'
