Genesis Sedan V8-4.6L (2011)

Page 1
background image

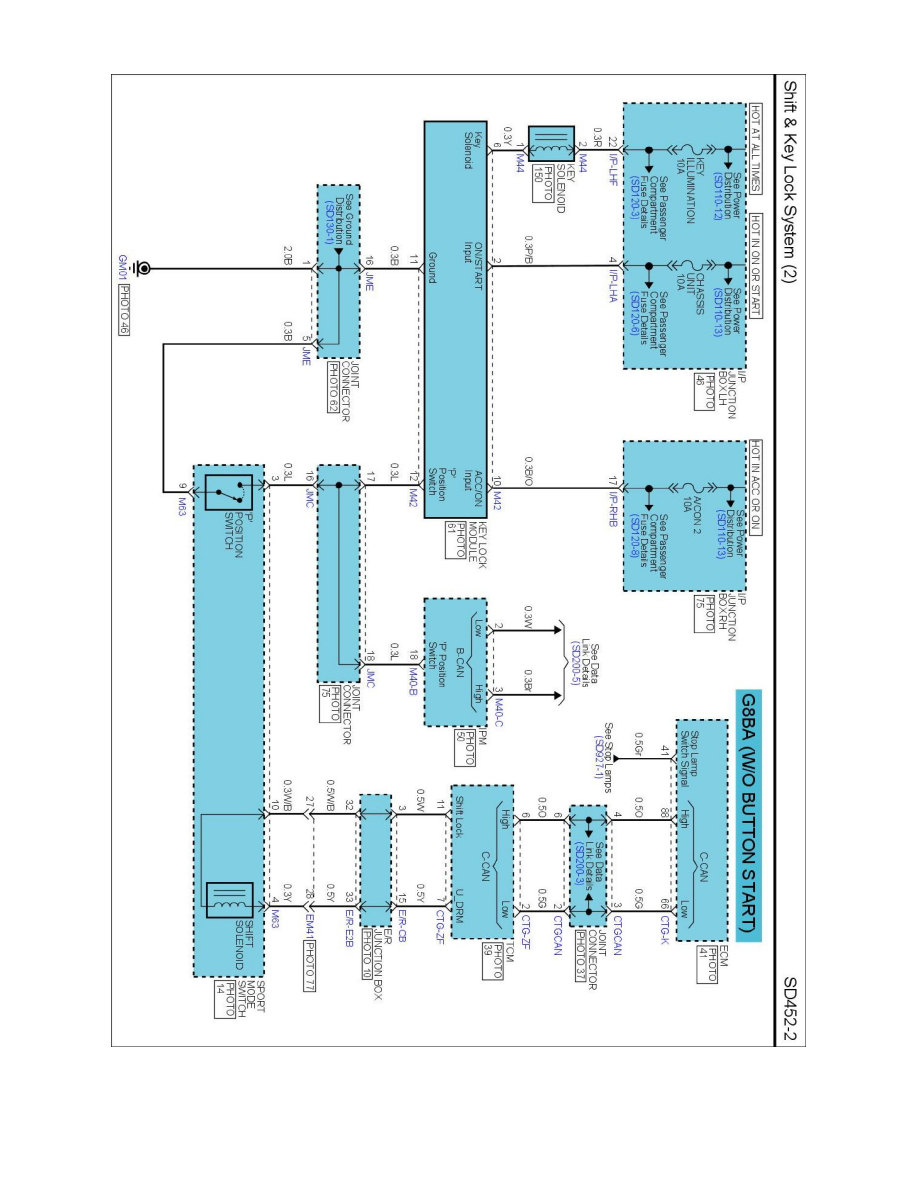

Ignition Lock Solenoid: Electrical Diagrams

SD452-2 Shift & Key Lock System (2)
