Engine Coolant Temperature Sensor - Diagnosis (page 3 of 4)

Make

Hyundai

Model

Pony Sedan (Canada)

Engine

L4-1439cc 1.4L SOHC

Year

1986

Section

Relays and Modules - Computers and Control Systems › Electronic Control Unit <--> [Engine Control Module] › Technical Service Bulletins

Powertrain ManagementEngine Coolant Temperature Sensor - Diagnosis · page 3 of 4

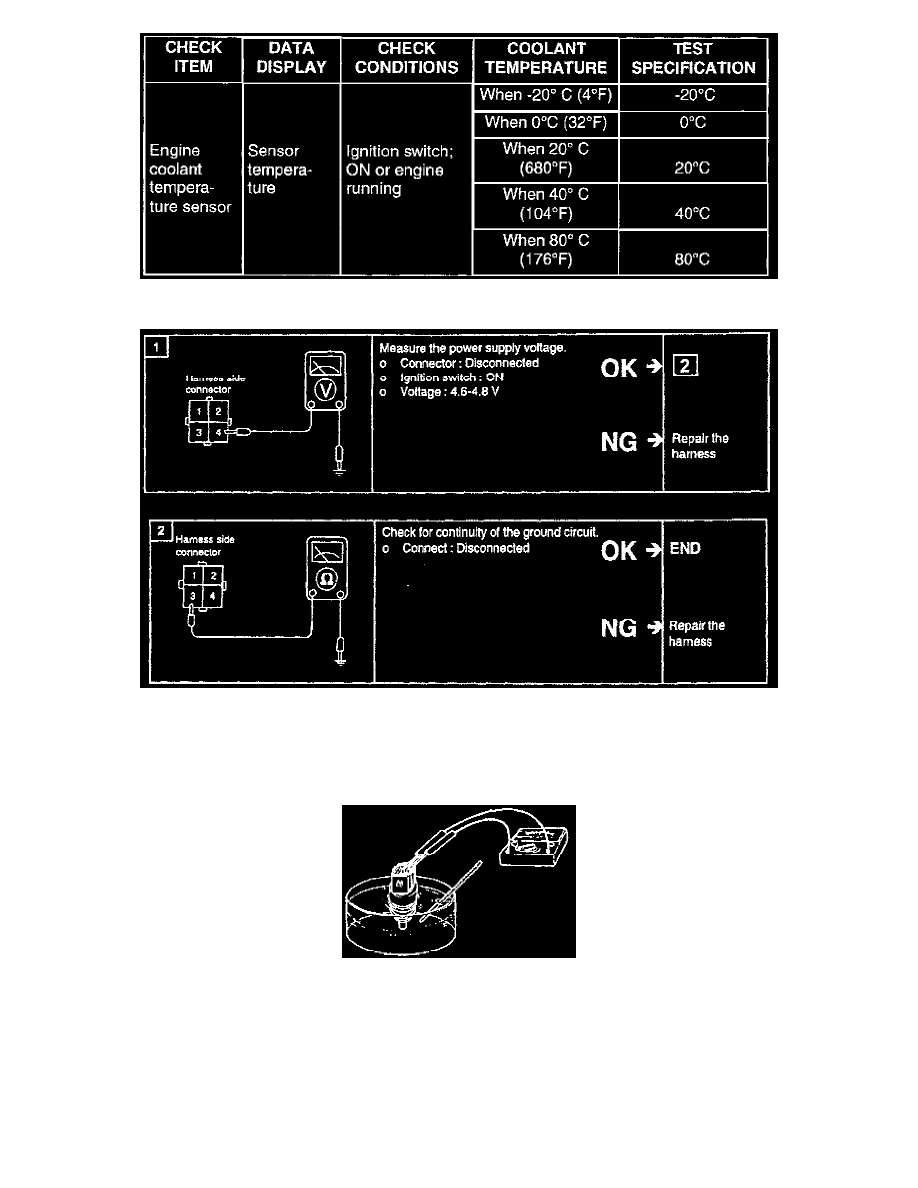

USING A SCAN TOOL:

HARNESS INSPECTION PROCEDURES:

SENSOR INSPECTION:

1.

Remove the ECT sensor from the intake manifold.

2.

With the temperature sensing portion of the ECT sensor immersed in hot water, check resistance.
