Santa Fe AWD L4-2.4L (2010)
Alternator: Removal and Replacement

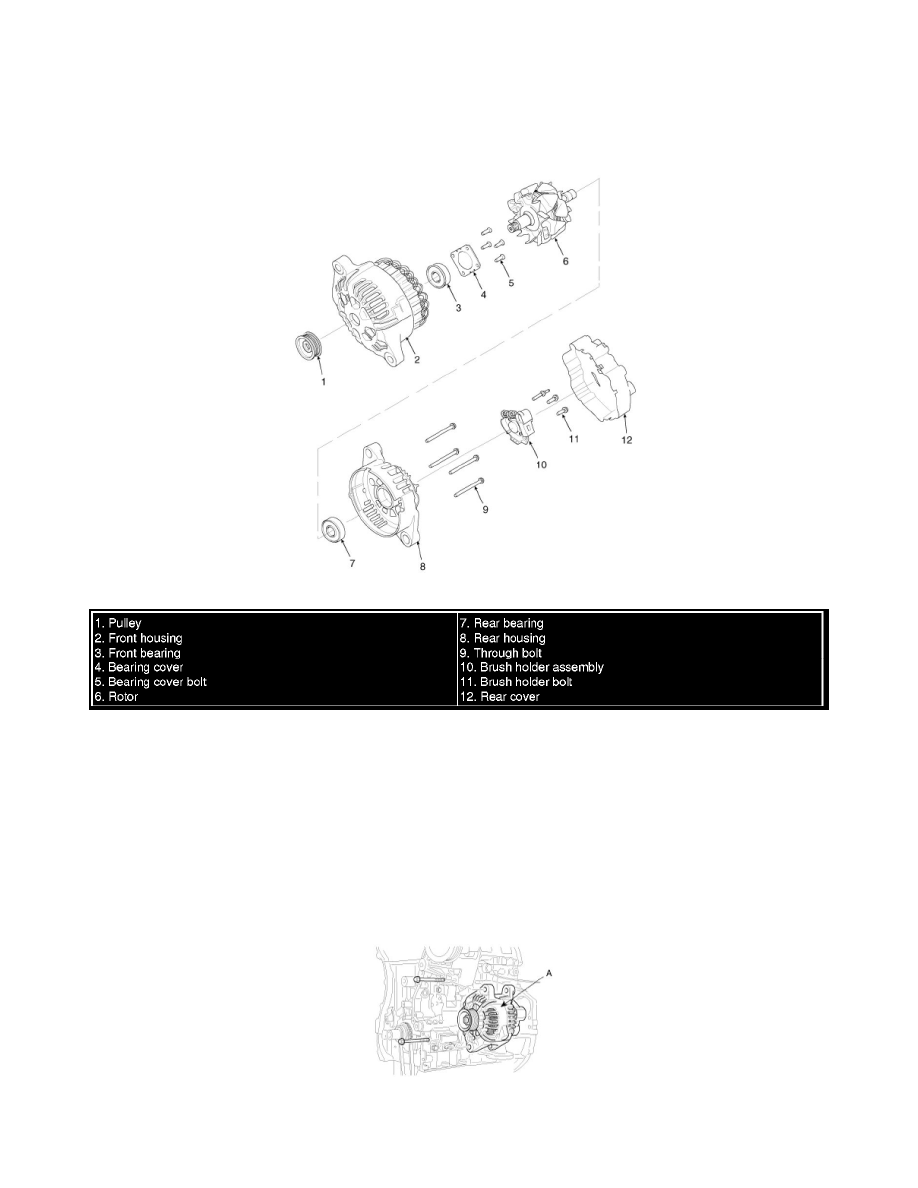

Components and Components Location
Component
Repair Procedures
Replacement
1. Disconnect the battery negative terminal first, then the positive terminal.
2. Disconnect the alternator connector, and remove the cable from alternator "B" terminal.
3. Remove the drive belt.
4. Pull out the through bolt and then remove the alternator (A).
Tightening torque :
49.0 - 63.7N.m (5.0 - 6.5kgf.m, 36.2 - 47.0lb-ft)
5. Installation is the reverse order of removal.
