Santa Fe AWD V6-3.3L (2009)

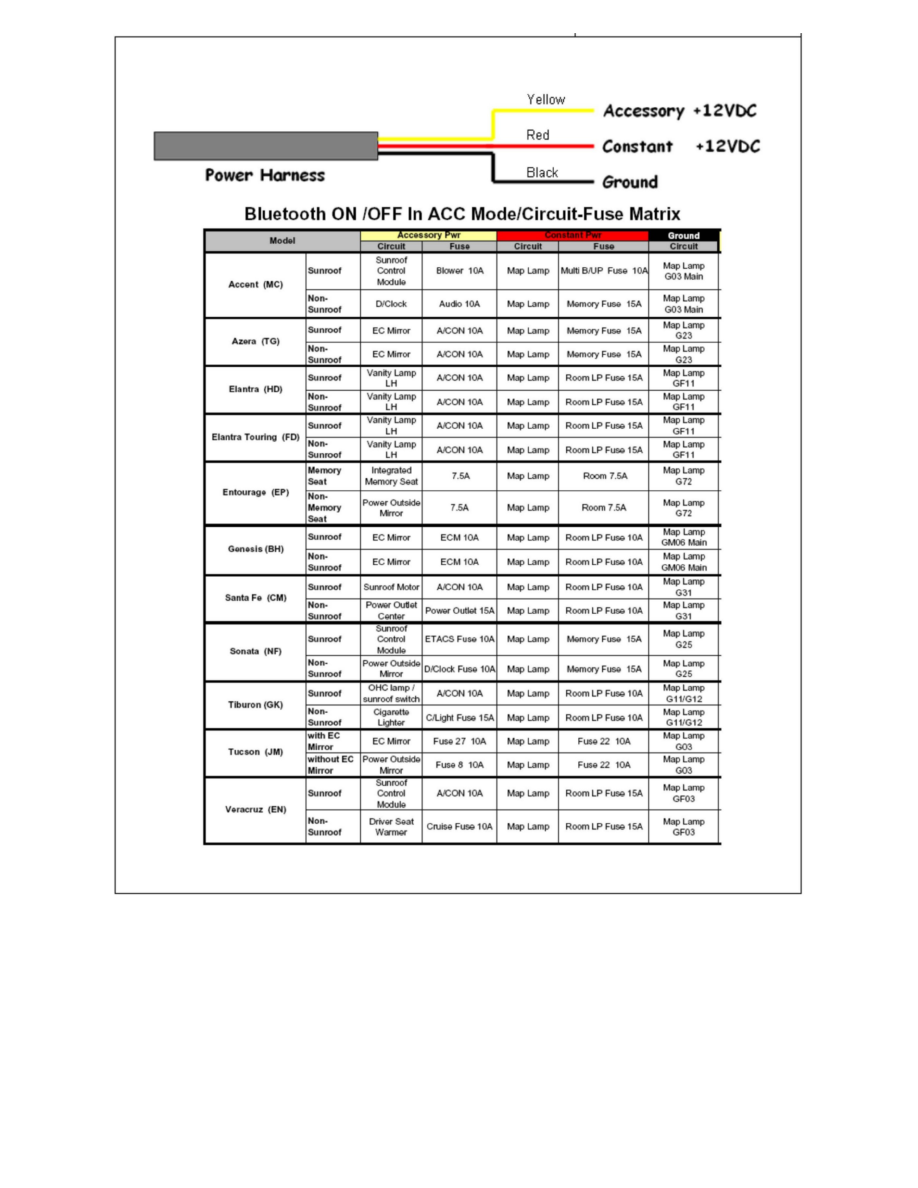

4. Refer to the power harness diagram and circuit-fuse matrix (shown above) to check the BATT, ACC, and GND circuits.
5. Once these circuits are determined to be good, proceed to the following pages for detailed diagnostic steps.
