Santa Fe FWD V6-3.3L (2009)
Seat Belt: Service and Repair
Replacement
Front Seat Belt Replacement
CAUTION:
-
When installing the belt, make sure not to damaged the pretensioner.
NOTE:
-
Any seat belt that was worn during a collision must be replaced with the seat belt buckle.
1. Remove the following items first.
A. Front seat assembly.
B. Front and rear door scuff trim.

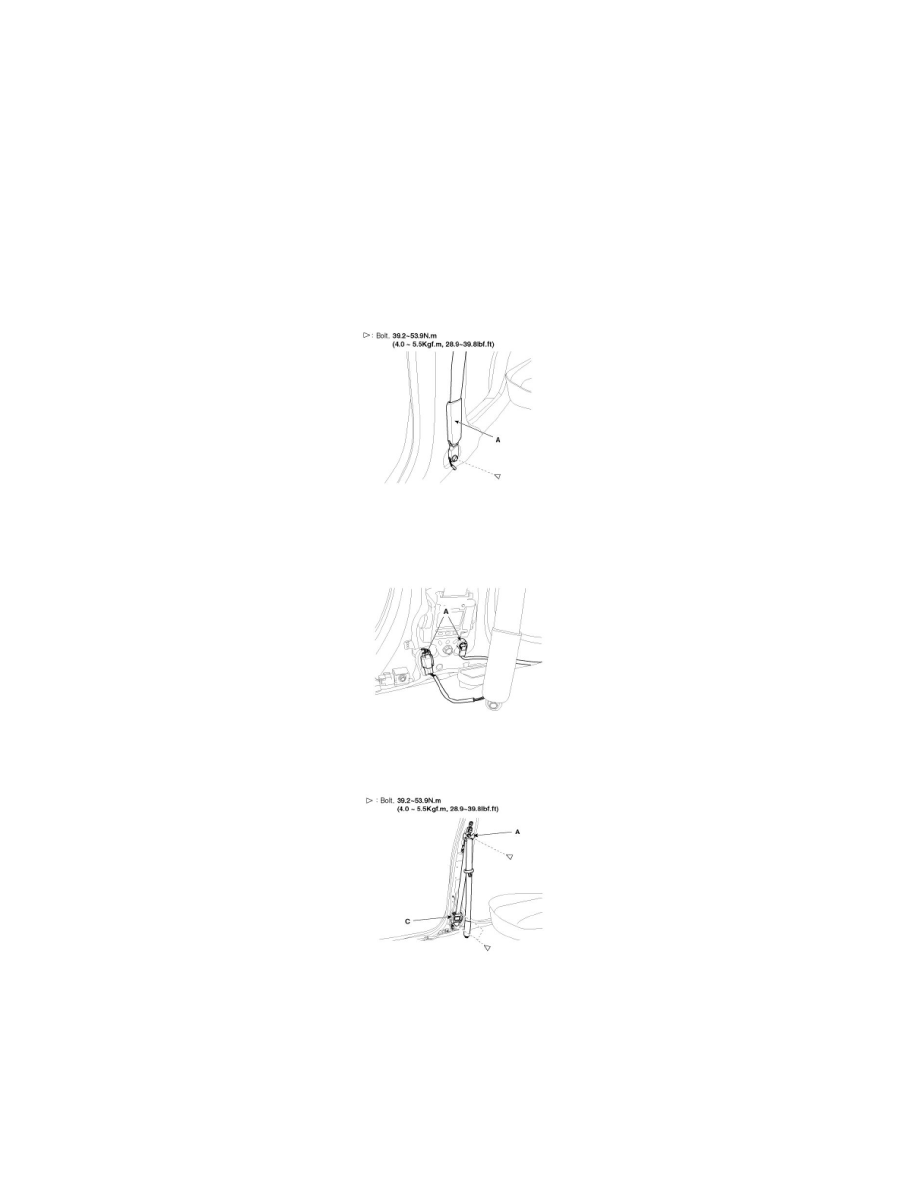

2. After raise the lower anchor cover (A), loosen the lower anchor mounting bolt (B).
3. Remove the center pillar lower trim.
4. Remove the center pillar upper trim.
5. Disconnect the connector(A).
6. Remove the upper anchor (A).
7. Loosen the mounting bolt, then remove the pretensioner (C).
8. Installation is the reverse of removal.
Secondary Seat Belt Relacement
CAUTION:
-
When installing the belt, make sure not to damaged the pretensioner.
NOTE:
-
Any seat belt that was worn during a collision must be replaced with the seat belt buckle.
