Scoupe L4-1468cc 1.5L SOHC (12 VALVE) (1993)
/Page-1912001.png)
Cruise Control Servo: Testing and Inspection

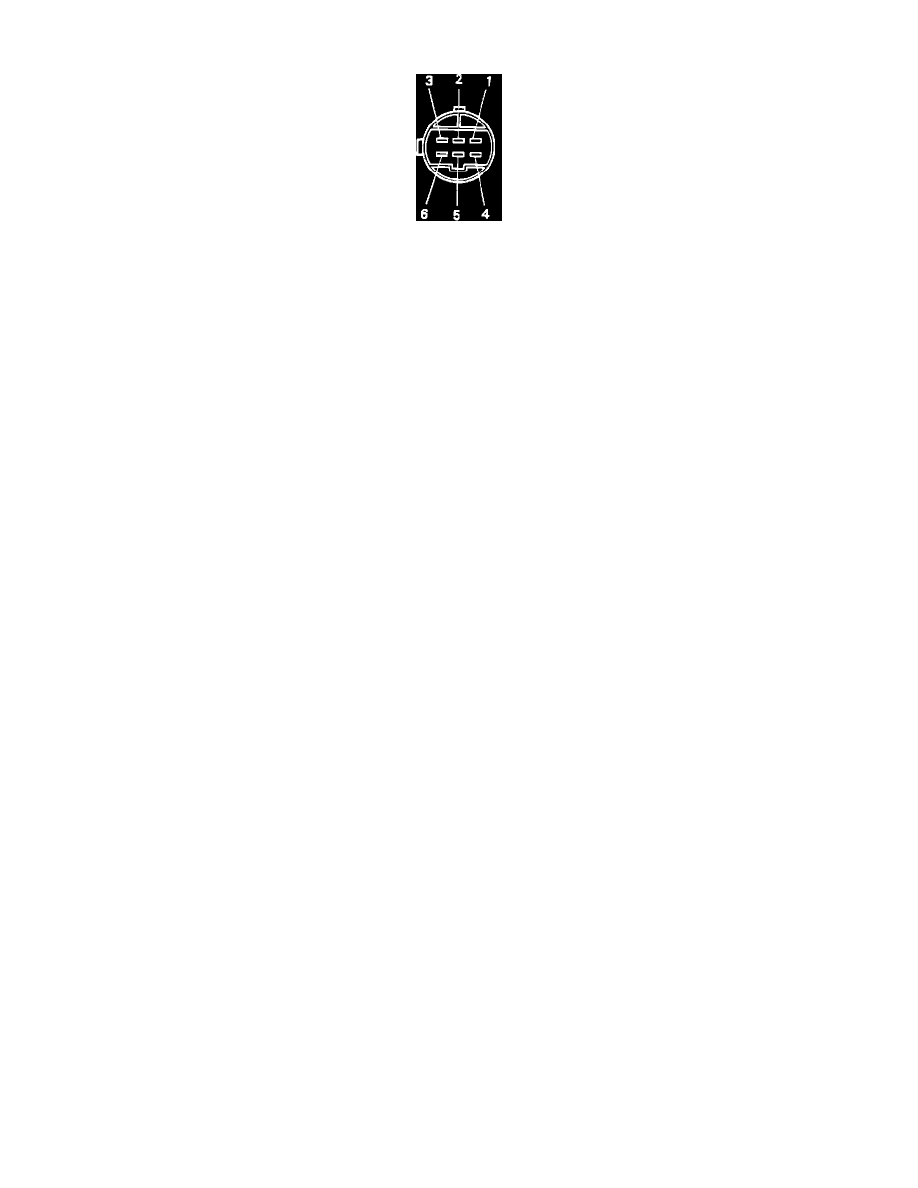

Fig. 11 Testing Actuator
1.
Disconnect the connector, Fig. 11.
2.
Using an ohmmeter, measure resistance of clutch coil.
3.
If resistance in not approximately 55 ohms between terminals 1 and 2, replace actuator.
