Sonata V6-2.7L (2004)
Intake Manifold: Specifications

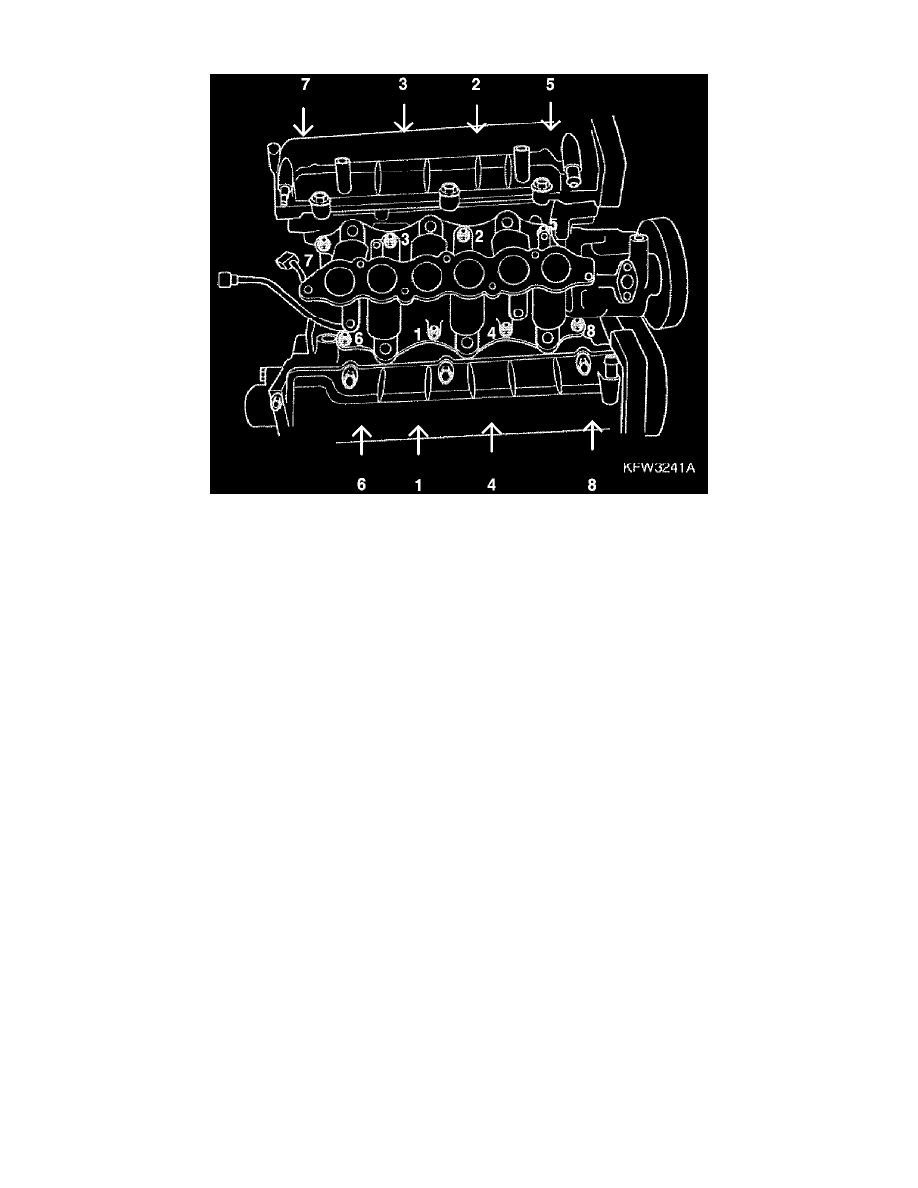

Intake Manifold Torque Sequence
Air intake surge tank to intake manifold (bolt) ............................................................................................. 15 - 20 Nm (150 - 200 kgf-cm, 11 - 14 ft. lbs.)
Air intake surge tank to intake manifold (nut) .............................................................................................. 15 - 20 Nm (150 - 200 kgf-cm, 11 - 14 ft. lbs.)
Intake manifold to cylinder head .................................................................................................................. 19 - 21 Nm (190 - 210 kgf-cm, 14 - 15 ft. lbs.)
Throttle body to surge tank bolt ................................................................................................................... 15 - 20 Nm (150 - 200 kgf-cm, 11 - 14 ft. lbs.)
