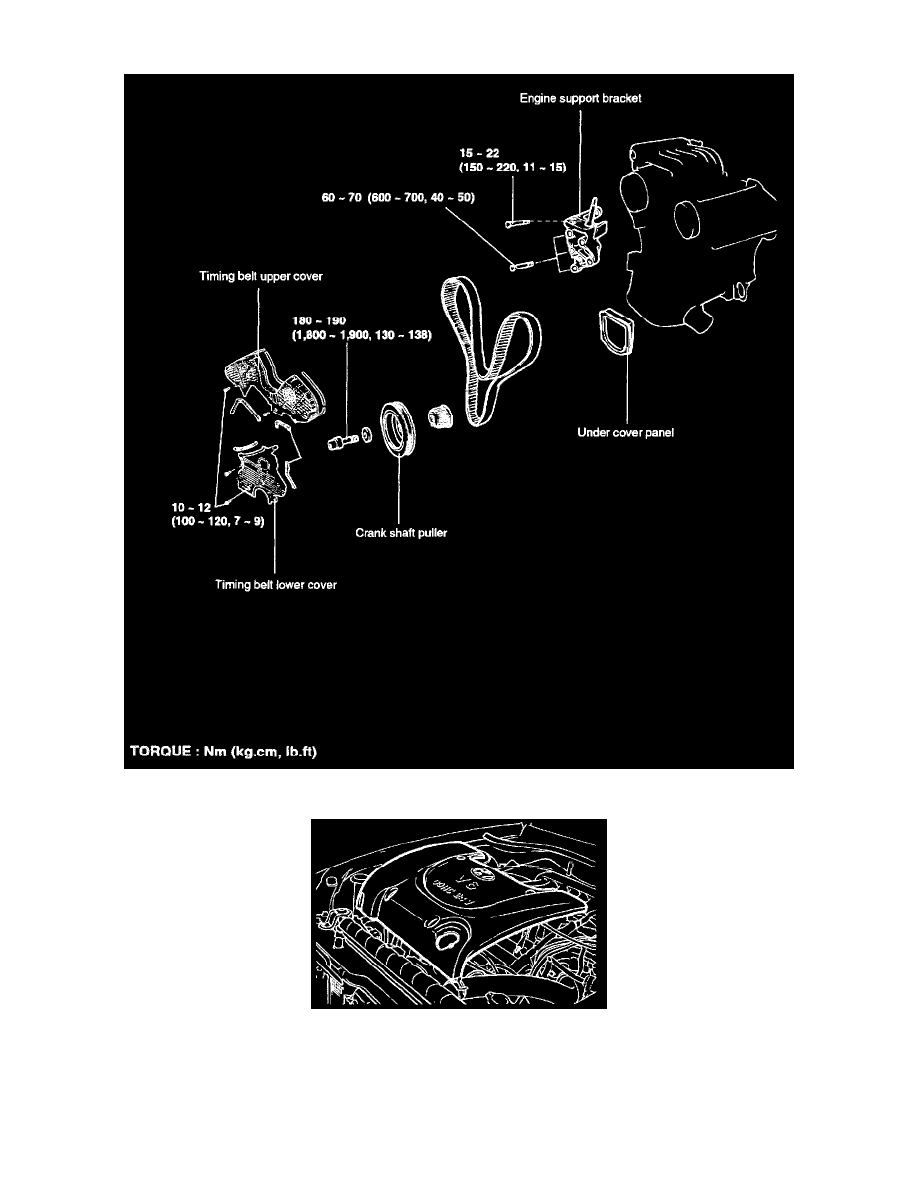

Timing Belt: Service and Repair

REMOVAL

1. Remove the engine cover.
2. Using a [16 mm], rotate the tensioner arm clockwise (about 14°) and remove the belt from the pulley.
