Timing Belt: Service and Repair

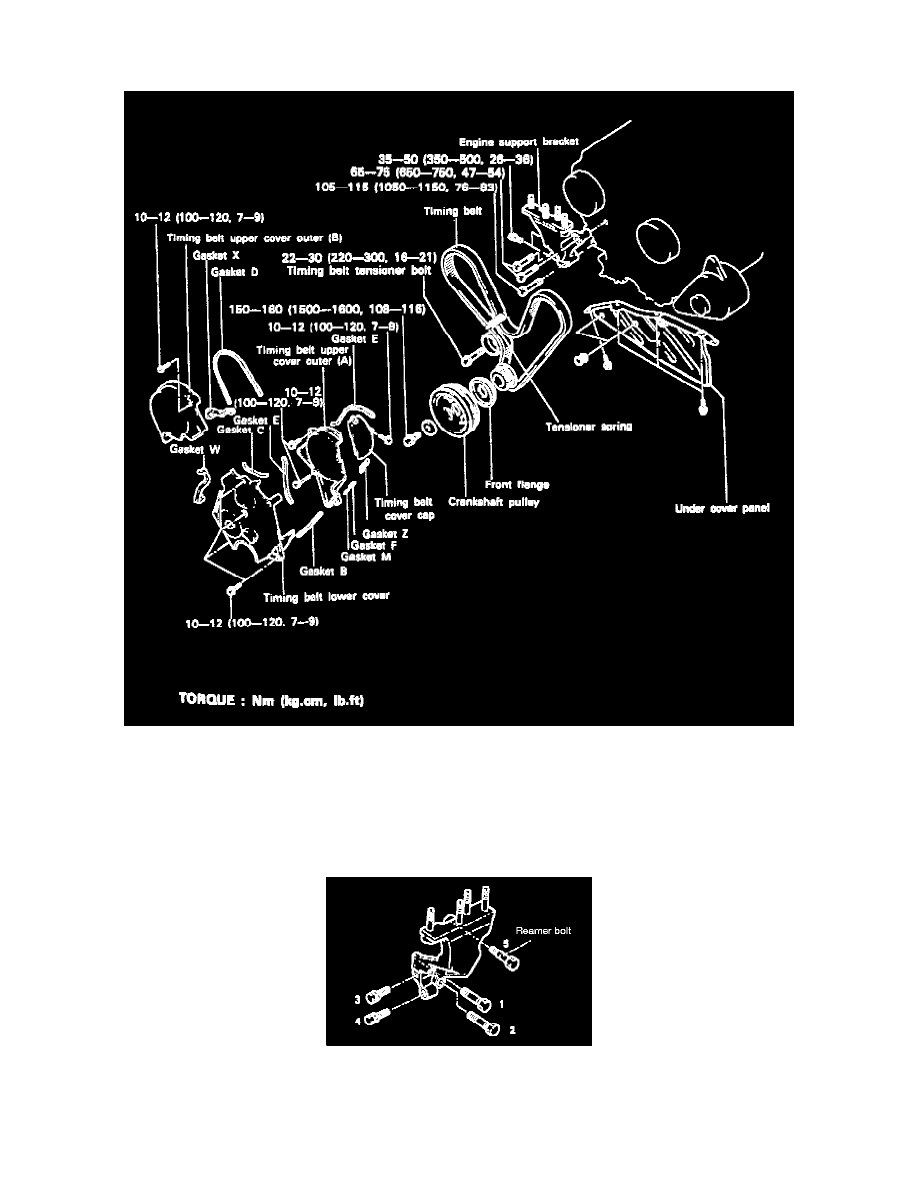

TIMING BELT
REMOVAL
1. To remove the engine mounting bracket, support the oil pan with a block of wood and jack until removal is completed.
2. Remove the power steering oil pump with the return hoses connected.
3. Remove the engine support bracket in the numbered sequence shown in the image.
NOTE: Slowly remove the reamer bolt. Keep in mind that the reamer bolt is sometimes heat seized on the engine support bracket. To make the
installation easier, raise the engine as necessary.
