Timing Component Alignment Marks: Locations (page 2 of 2)

Make

Hyundai

Model

Sonata

Engine

V6-3.3L

Year

2006

Section

Timing Component Alignment Marks

MaintenanceLocations · page 2 of 2

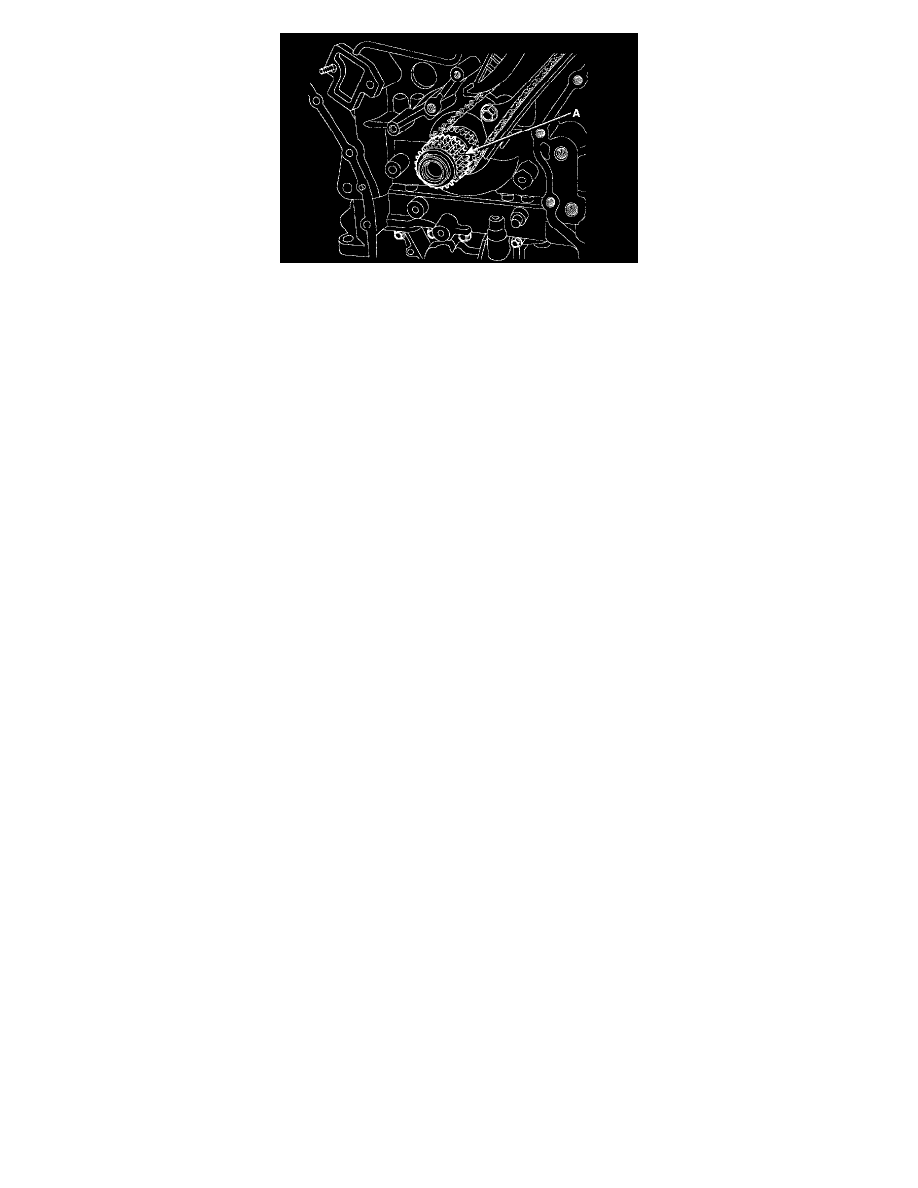

Crankshaft Sprocket For RH Timing Chain And Oil Pump

The timing mark of each sprockets should be matched with timing mark (color link) of timing chain at installing timing chain.
