Cruise Control Servo: Testing and Inspection
ACTUATOR

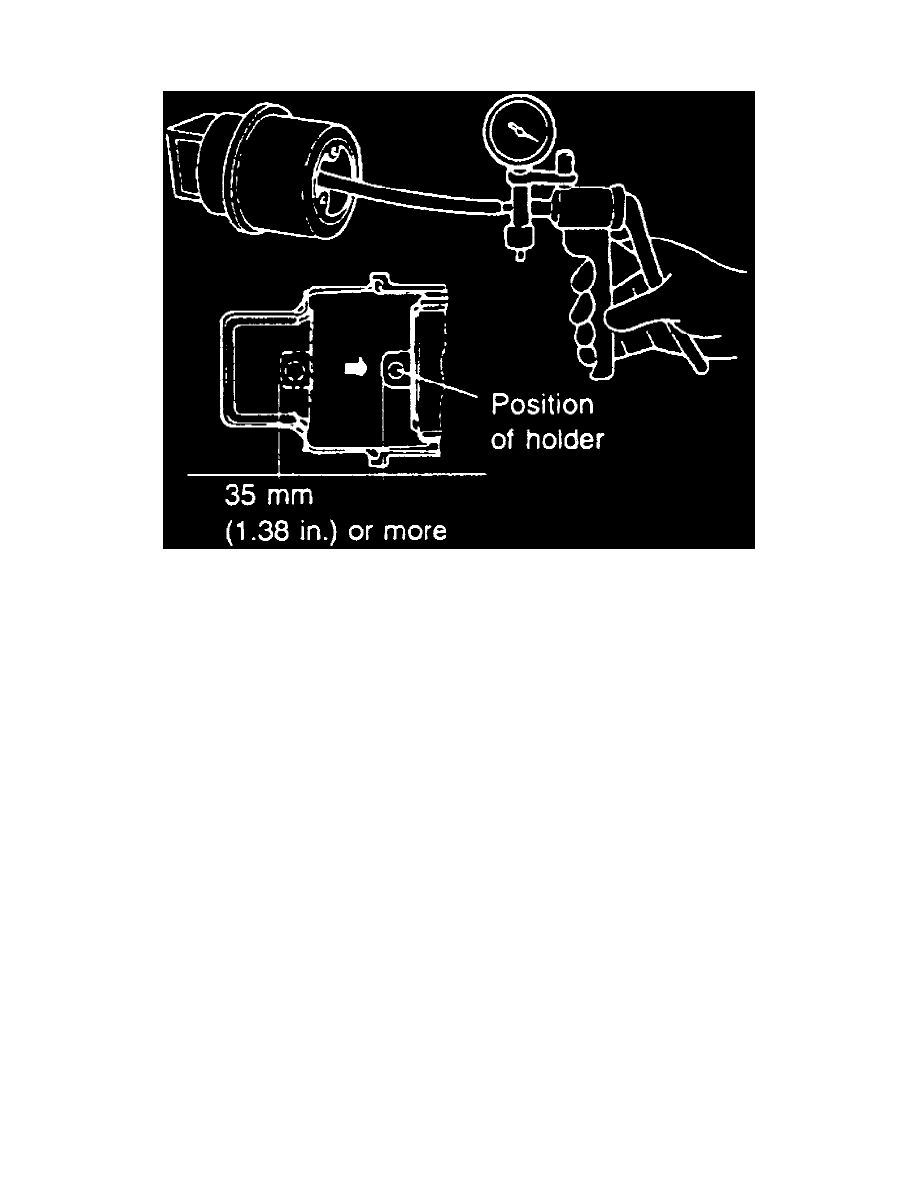

Fig. 10 Actuator Inspection
1. Remove the actuator.
2. Apply negative pressure to the actuator with the vacuum pump and check that the holder moves more than 35 mm (1.38 in.). In addition, check
that there is no change in the position of the holder when negative pressure as maintained in then inspect and adjust the cruise control cable.
