Tiburon L4-1.8L (1997)
Fluid - M/T: Service and Repair
REPLACEMENT
Use HP Gear Oil SAP 75W/85W (API-GL 4)

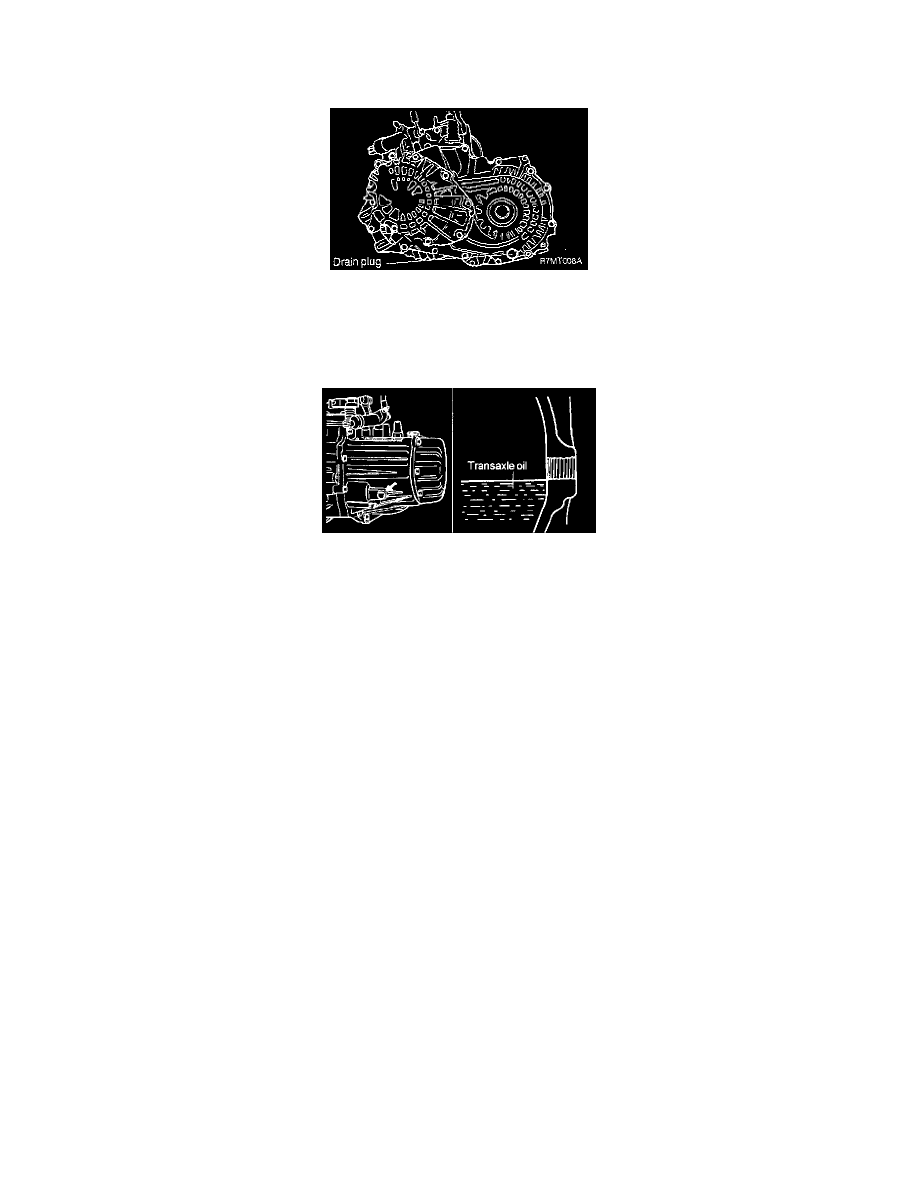

1. With the vehicle parked on a level surface, remove the drain plug and drain the transaxle oil.
2. Replace the gasket with a new one and install the drain plug.
Tightening torque:
Drain plug: 30-35 Nm (22-25 ft. lbs.).
3. Add new oil through the filler plug, filling to the same level as the plug opening.
Transaxle oil total capacity: 2.15 L (2.27 US quarts).
Tightening torque:
Filler plug: 30-35 Nm (22-25 ft. lbs.).
