Tiburon L4-1.8L (1997)
Flex Plate: Service and Repair
REMOVAL

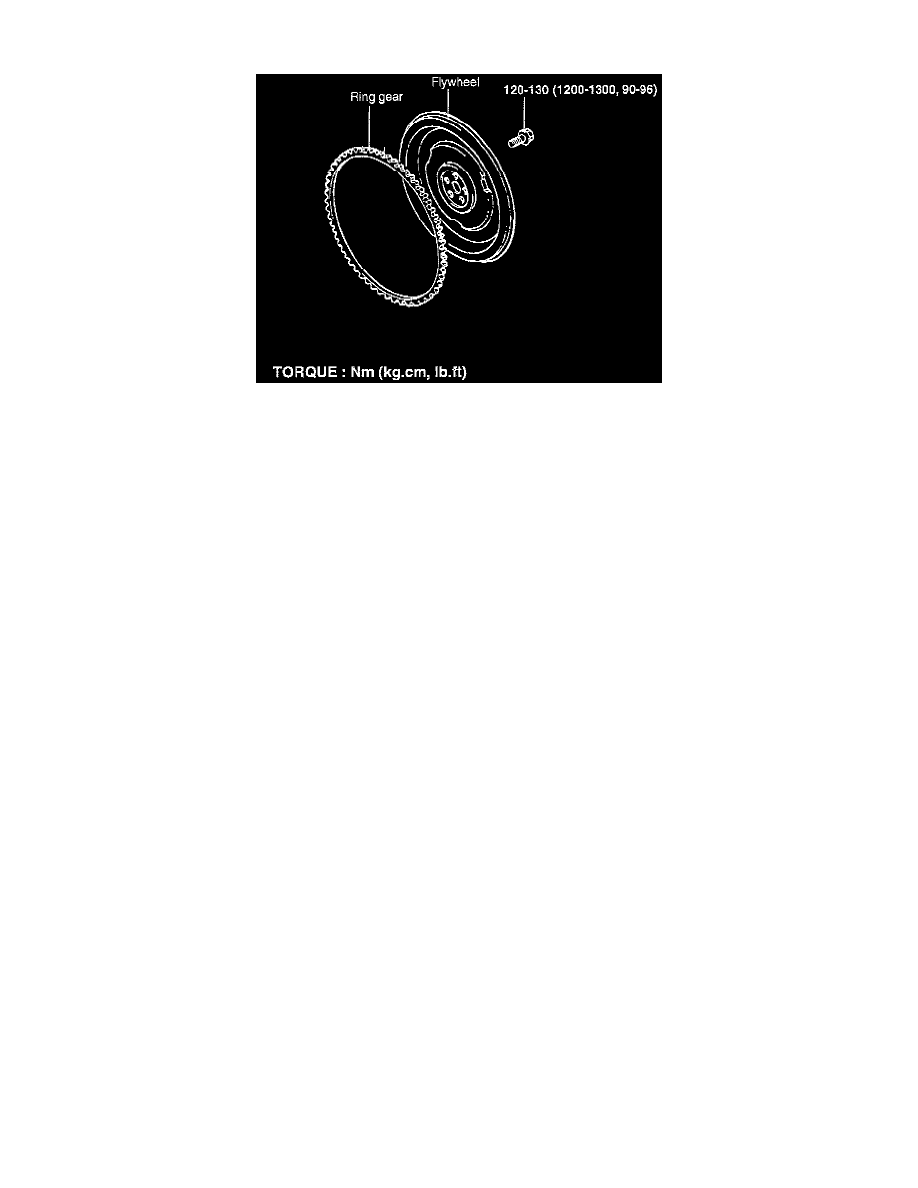

NOTE: Refer to illustration during removal and installation procedures.
1. Remove the transaxle.
2. Remove the drive plate.
INSTALLATION
Installation is the reverse of removal, noting the following:
Tighten the drive plate bolts to 120-130 Nm (1200-1300 kg.cm, 90-96 ft. lbs.)
