Flywheel: Specifications (page 3 of 4)

Make

Hyundai

Model

Tiburon

Engine

L4-1.8L

Year

1997

Section

Flywheel

Transmission and DrivetrainSpecifications · page 3 of 4

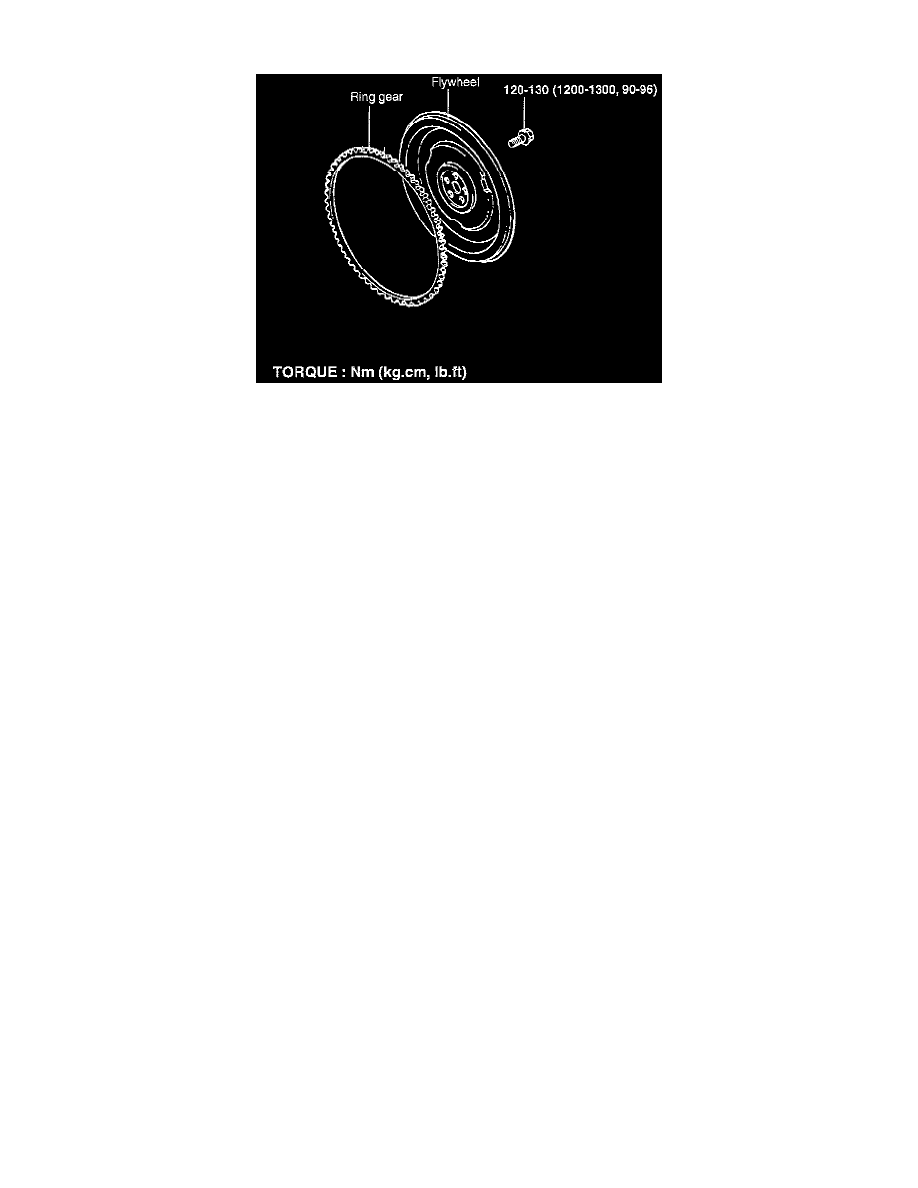

Flywheel: Testing and Inspection

1. Check the clutch disc contacting surface of the flywheel for damage and wear. Replace the flywheel if excessively damaged or worn.
2. Check the clutch disc contacting surface of the flywheel for runout.

Standard Value:

Flywheel run-out: 0.1 mm (0.004 inch)

3. Check the ring gear for damage, crack and wear, and replace if necessary.

Pinch or Ctrl + scroll to zoom. Double-tap to reset.

06 Transmission
