Tiburon L4-2.0L (1999)
Fluid - M/T: Service and Repair
REPLACEMENT OF TRANSAXLE GEAR OIL
Use HP Gear Oil SAE 75W/90 (API-GL 4)

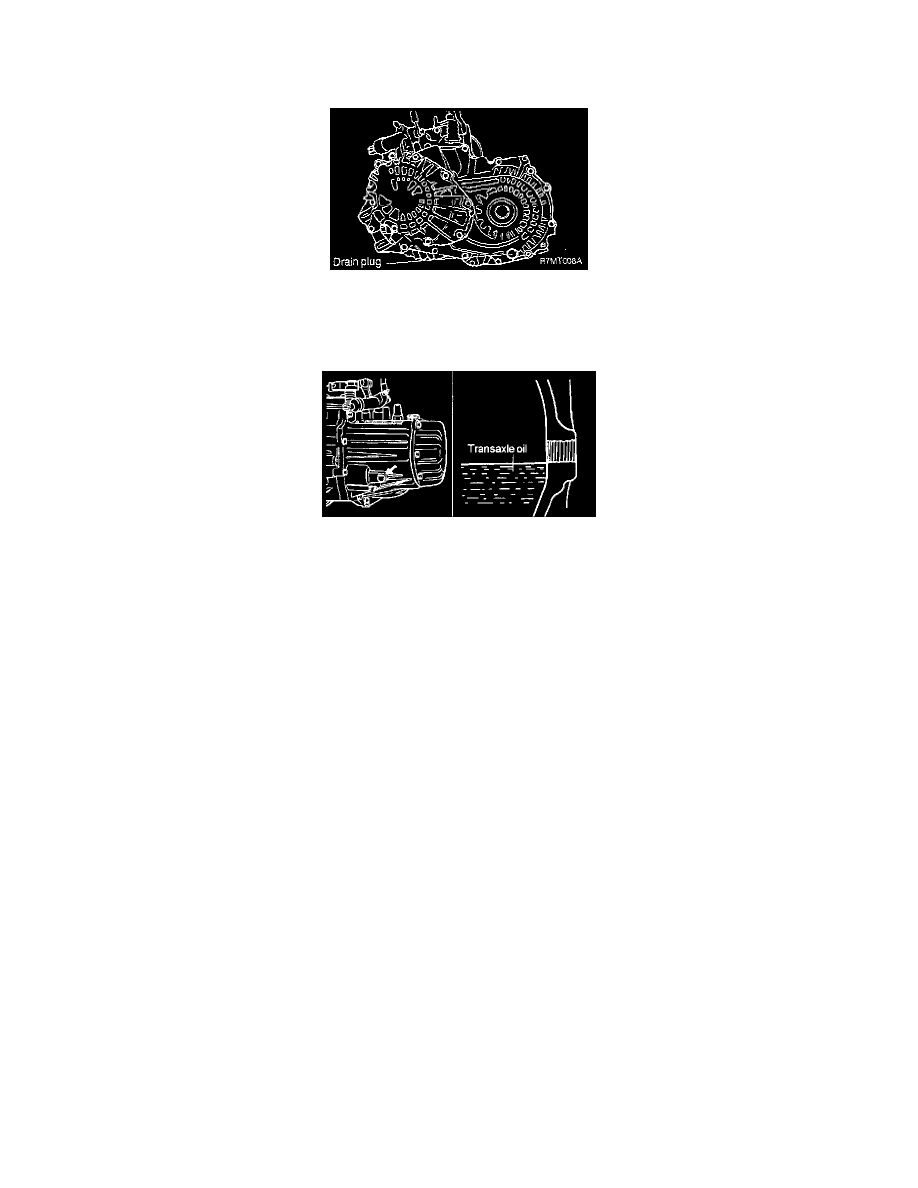

1. With the vehicle parked on a level surface, remove the drain plug and drain the transaxle oil.
2. Replace the gasket with a new one and install the drain plug.
Tightening torque:
Drain plug 30 - 35 Nm (300 - 350 kg.cm. 22 - 25 ft. lbs.)
3. Add new oil through the filler plug, filling to the same level as the plug opening.
Transaxle oil total capacity: 2.15 liters (2.27 u.s.qts., 1.89 Imp. qts. )
Tightening torque:
Filler plug 30 - 35 Nm (300 - 350 kg.cm. 22 - 25 ft. lbs.)
