Tiburon V6-2.7L (2004)
Power Door Lock Switch: Testing and Inspection
DOOR LOCK SWITCH INSPECTION
1. Remove the door trim panel.
2. Disconnect the 6P connector from the actuator.

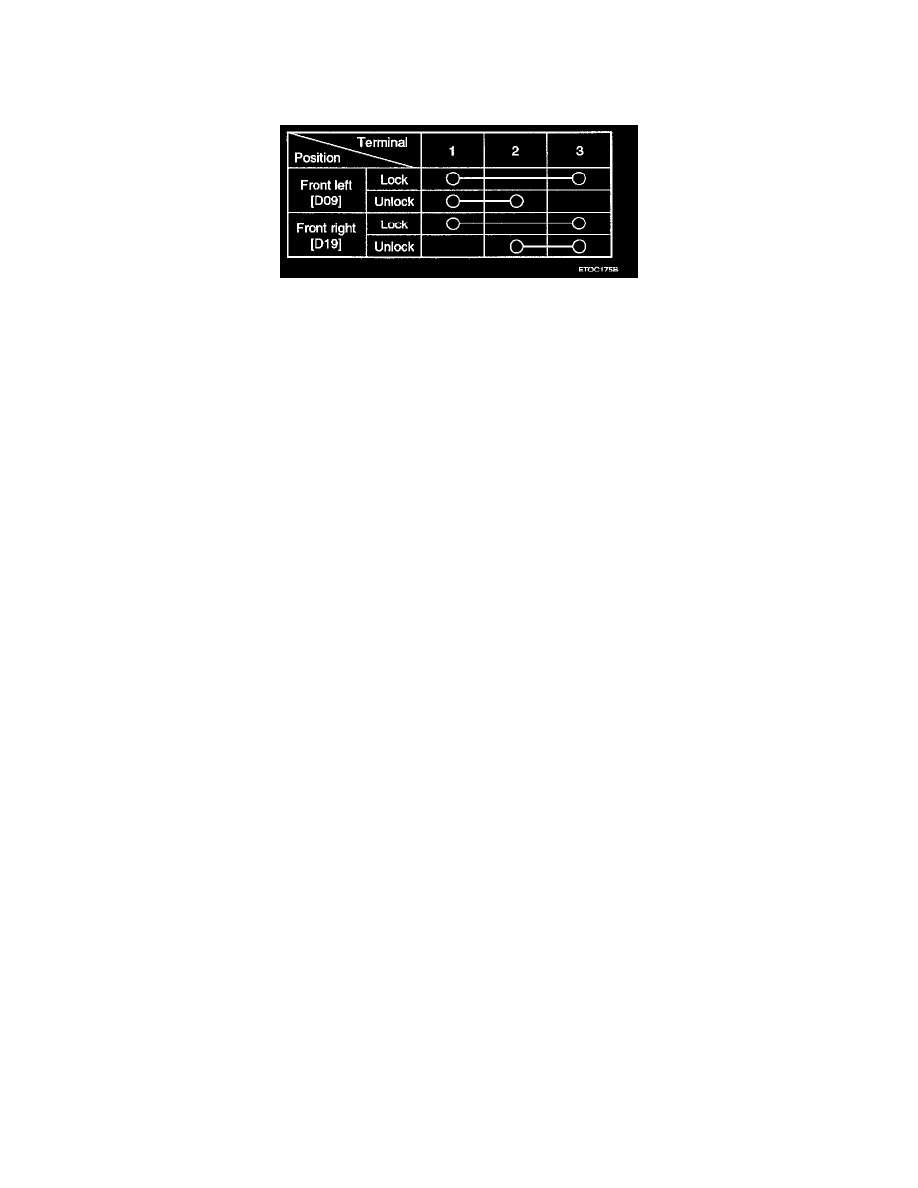

3. Check for continuity between the terminals in each switch position according to the table.
