Tiburon V6-2.7L (2004)

Page 1
background image

Brake Pad: Service and Repair
Front

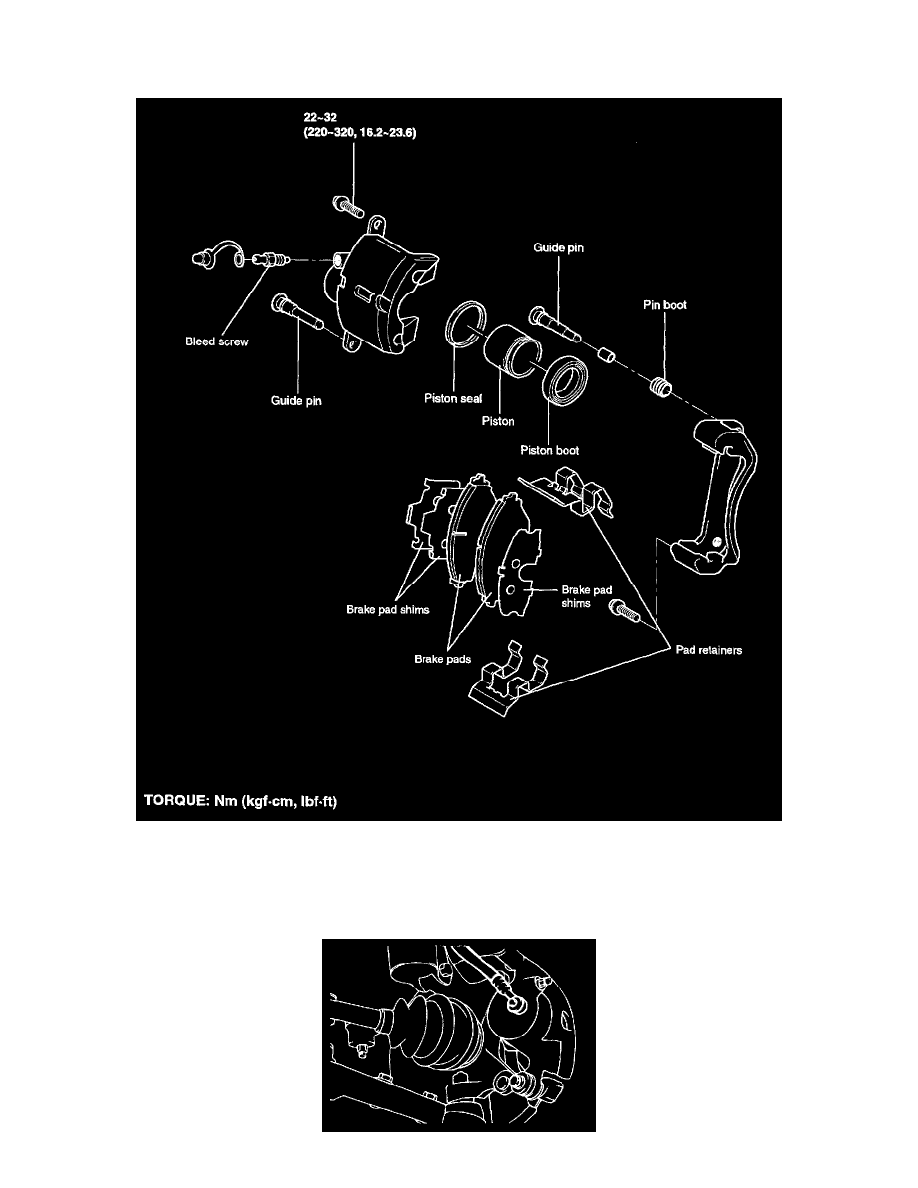

FRONT DISC BRAKE

REPLACEMENT

BRAKE PAD REMOVAL
1. Remove the 2 guide pin bolt, remove the caliper assembly from the knuckle and secure it with a wire or some other retaining method.
