Cruise Control Switch: Testing and Inspection
CRUISE CONTROL SWITCH TEST
1. Disconnect the battery negative cable, then disconnect the positive cable, and wait at least three minutes
2. Remove the driver's airbag.
3. Disconnect the control switch connector.

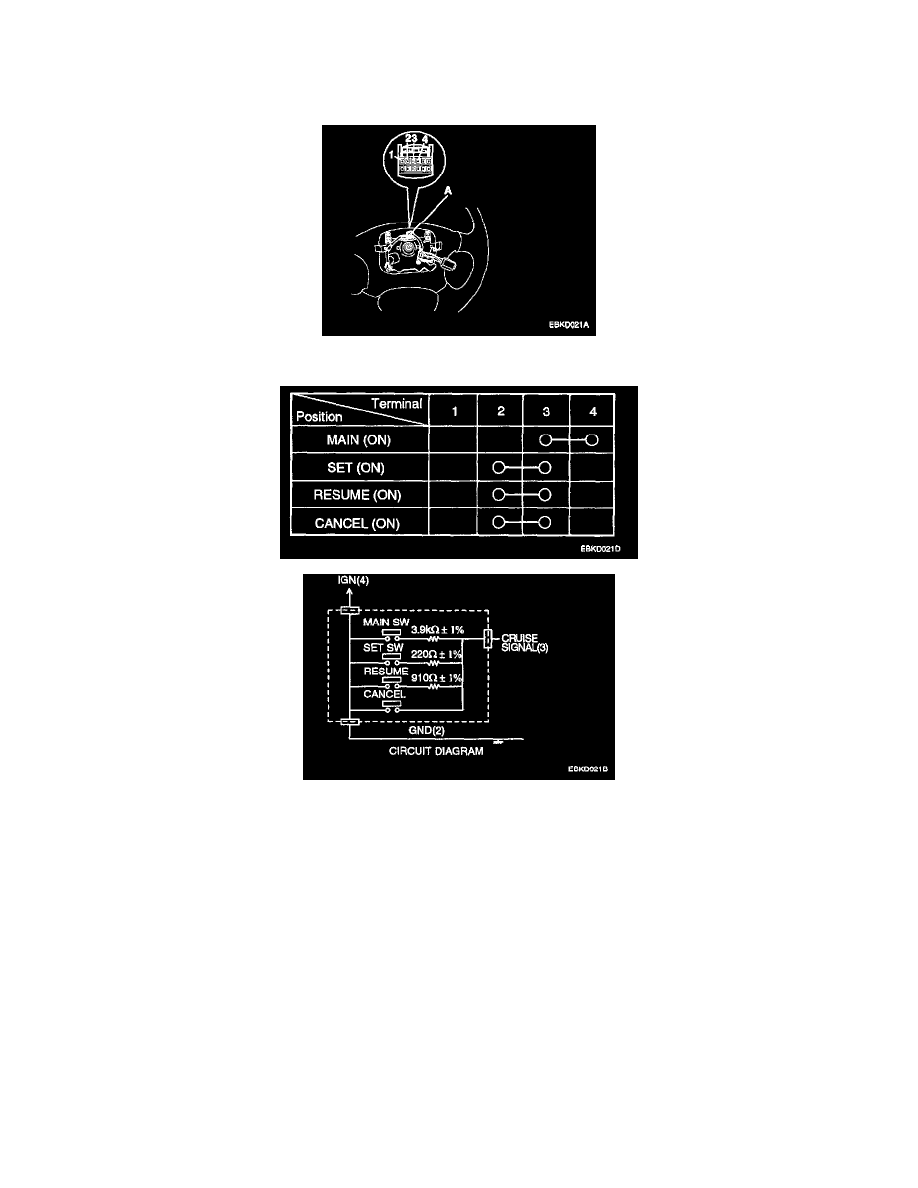

4. Check the continuity between the terminals of the connector in each switch position according to the table. If there is continuity, and it matches the
table, the switch is O.K. If there is no continuity, replace the control switch.
