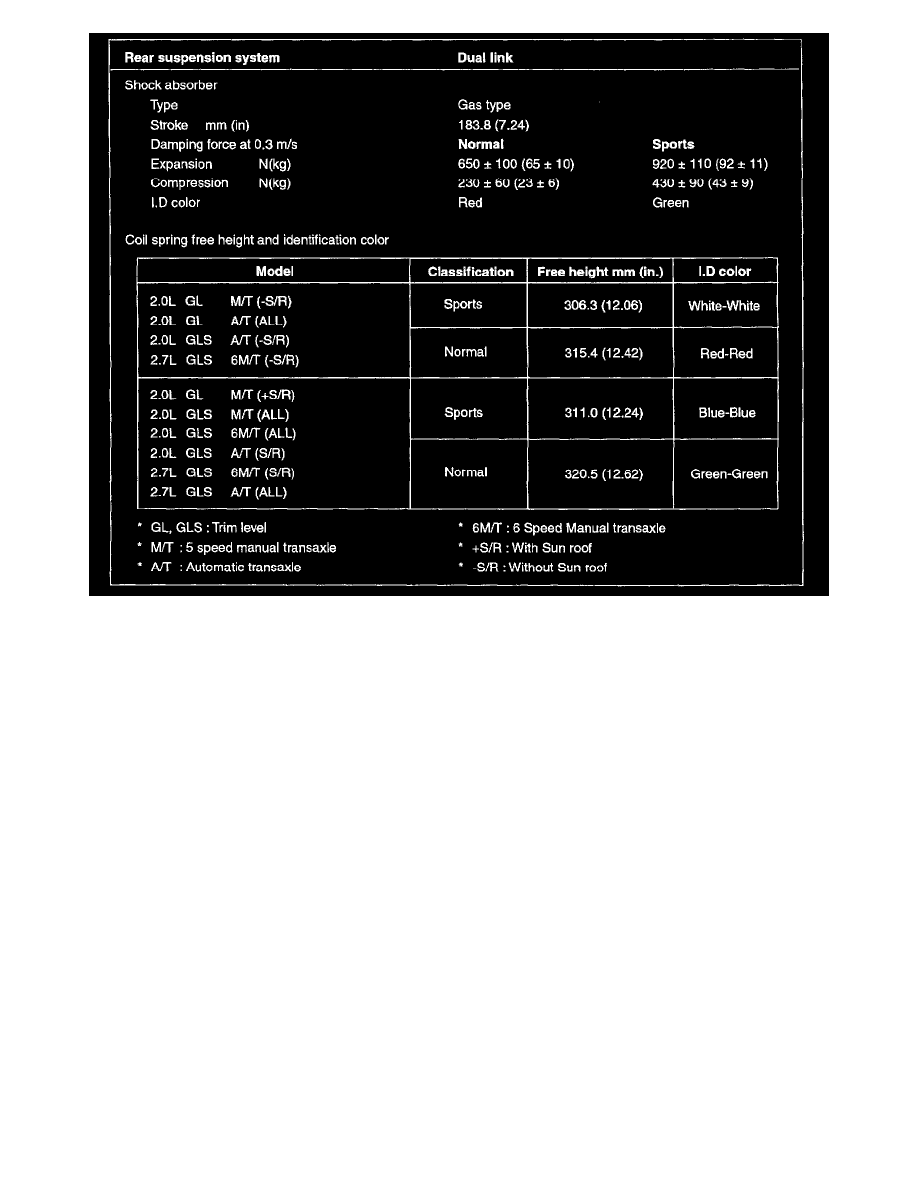

REAR SUSPENSION SYSTEM

Alignment Specifications revised per TSB # 02-50-005

Tire Pressure PSI Front/Rear for P215/45ZR17  ..........................................................................................................................................................  32/30
Tire Pressure PSI Front/Rear others  .............................................................................................................................................................................  30/30
Total Toe (Cross):

Front ....................................................................................................................................................................................................  0 ± 2 mm (1.5 mm)
Rear ............................................................................................................................................................................................  4 + 3 mm - 1 mm (2 mm)

Camber (Cross):

Front ..................................................................................................................................................................................................  0.22° ± 0.5° * (0.5°)
Rear .................................................................................................................................................................................................  - 1.18° ± 0.5° * (0.5°)

Caster (Cross):

Front ..................................................................................................................................................................................................  2.97° ± 0.5° * (0.5°)

* = Angle is not adjustable
