Tiburon V6-2.7L (2004)
Ignition Cable: Testing and Inspection
INSPECT SPARK PLUG AND SPARK PLUG CABLE
1. Remove the spark plug cable(A).
NOTE: When removing the spark plug cable, pull on the spark plug cable boot (not the cable), as it may be damaged.
2. Using a spark plug socket, remove the spark plug(B).
CAUTION Be careful that no contaminates enter through the spark plug holes.

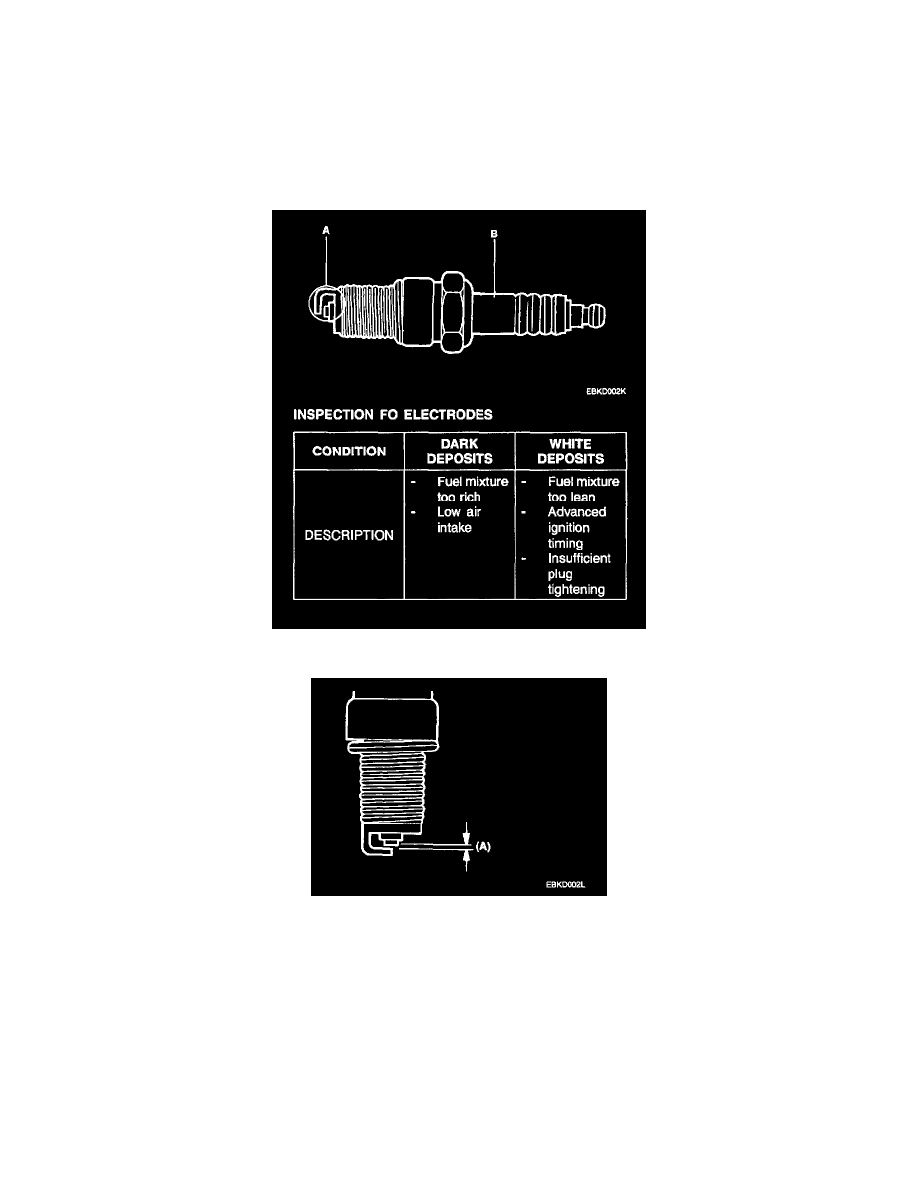

3. Inspect the electrodes(A) and ceramic insulator(B).
Inspection Of Electrodes
4. Check the electrode gap(A).
Standard (New): 1.0 - 1.1 mm (0.039 - 0.043 in.)
