Tiburon V6-2.7L (2004)
Technical Service Bulletin # 10-SS-002
Date: 100209
Tire Monitor System - General Information
Group SUSPENSION - TPMS
Number 10-SS-002
Date FEBRUARY, 2010
Model ALL MODELS
Subject
TPMS (TIRE PRESSURE MONITORING SYSTEM) GENERAL INFORMATION
This TSB provides a general overview of TPMS systems, a diagnostic chart, GDS tool basic use instruction, and warranty policy.

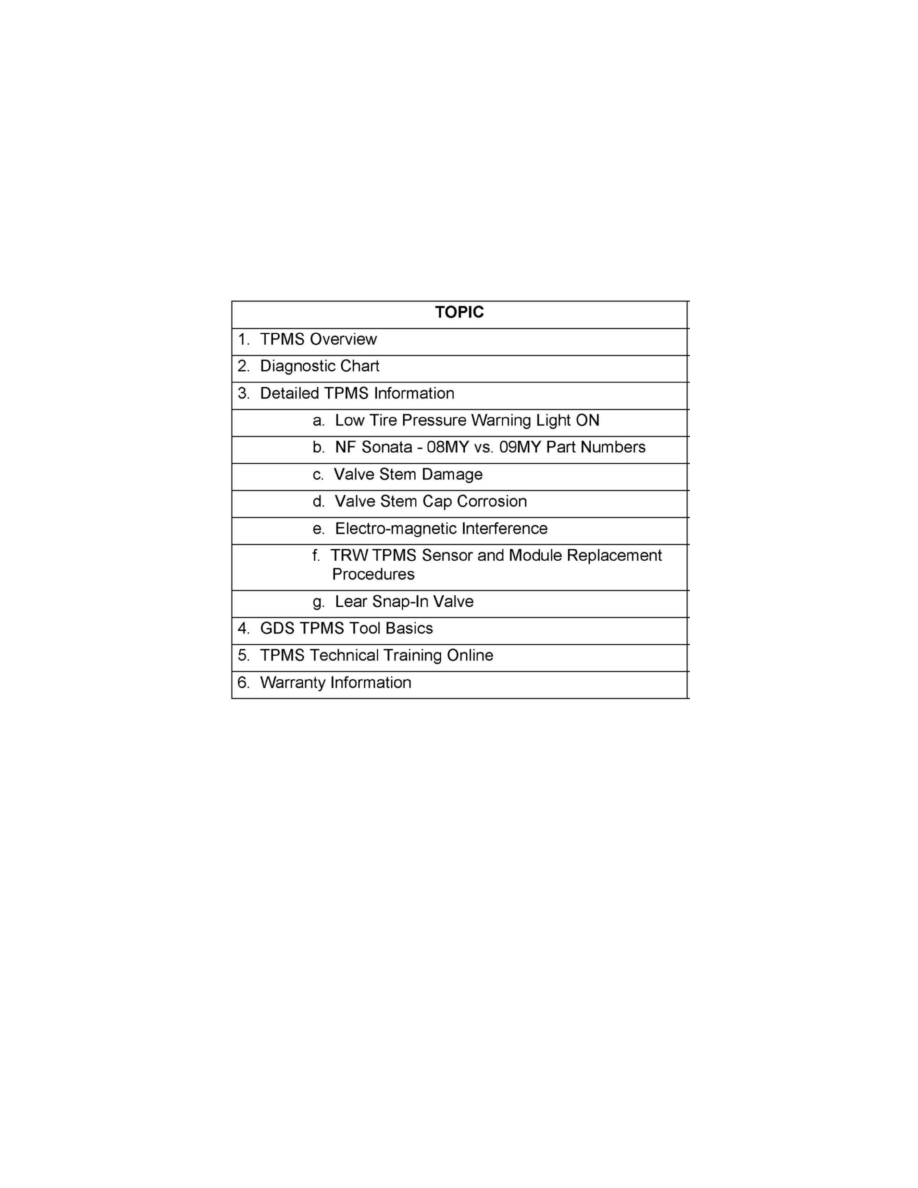

CONTENTS OF THIS TSB
1. TPMS Overview
1. Tire Pressure Monitoring System (TPMS) Overview
The TPMS system is designed to monitor tire pressure and alert the driver when a tire is significantly underinflated. Hyundai vehicles feature 2 types of
systems termed "High-Line" and "Low-Line". High-Line systems are able to display a low pressure condition for each tire position, while Low-Line
systems do not indicate which tire is underinflated.
Hyundai uses three suppliers for the TPMS systems across the vehicle line-up, TRW, Lear, and Siemens. Each of these systems operate in a very similar
manner, but have some minor variations in operation as described in this TSB.
