Tiburon V6-2.7L (2004)
Technical Service Bulletin # 04-36-010
Date: 040601
Engine Controls - MIL ON/DTC's P0133/P0153 Set
Group:
ENGINE ELECTRICAL
Number:
04-36-010
Date:
JUNE, 2004
Model:
2003-2004 TIBURON 2.7L
Subject:
2003-2004 TIBURON 2.7L ECM REPROGRAMMING FOR DTC P0133/P0153
DESCRIPTION:
Some 2003-2004 MY Tiburon vehicles with 2.7L V6 engines may experience "Check Engine" light illumination with one or both of the following
diagnostic trouble codes stored in the engine control module (ECM).
^
DTC P0133: HO2S Circuit Slow Response (Bank 1, Sensor 1)
^
DTC P0153: H025 Circuit Slow Response (Bank 2, Sensor 1)
This bulletin describes a procedure for updating the Engine Control Module (ECM) to correct the above conditions by using the Hi-Scan Pro.
VEHICLES AFFECTED:
^
Model: Some 2003-2004 TIBURON vehicles with 2.7L engines
^
Affected vehicle production date range:
--- January 01, 2003 through May 25, 2004

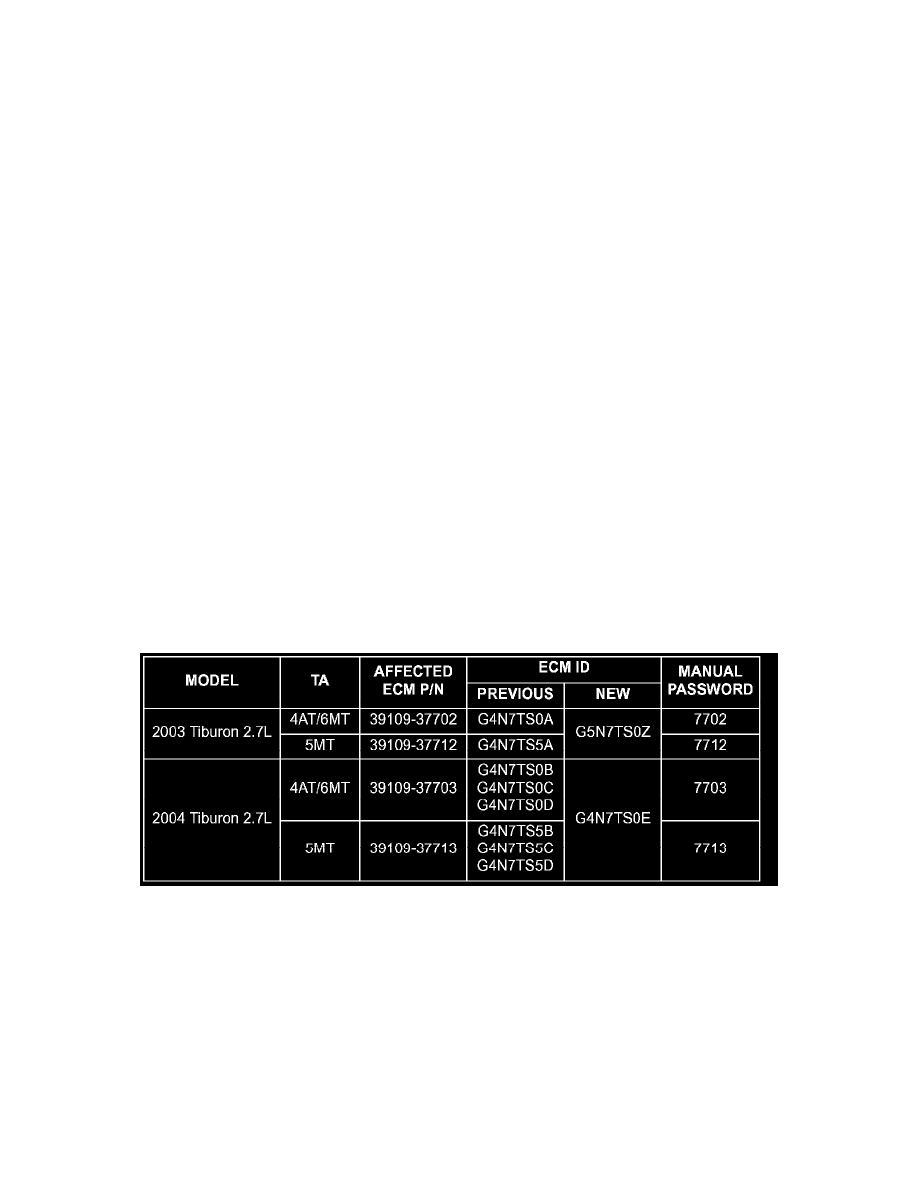

ECM REPROGRAMMING SPECIFICATIONS
CAUTIONS DURING REPROGRAMMING:
1.
Conduct reprogramming with the ignition key in the "ON" position.
2.
Be careful not to disconnect any cables connected to the vehicle or Hi-Scan Pro during reprogramming.
WARNING:
If reprogramming is interrupted, the manual update procedure must be used.
3.
Do not start the engine during reprogramming.
4.
Do not turn the ignition key off during reprogramming.
