Tiburon V6-2.7L (2004)
Air Bag Harness: Technical Service Bulletins
Air Bag System - Connector and Schematics Update
Group:
BODY ELECTRICAL
Number:
04-90-006
Date:
MARCH, 2004
Model:
2004 TIBURON
Subject:
2004 TIBURON AIRBAG WIRING CONNECTOR II01 CHANGE
DESCRIPTION:

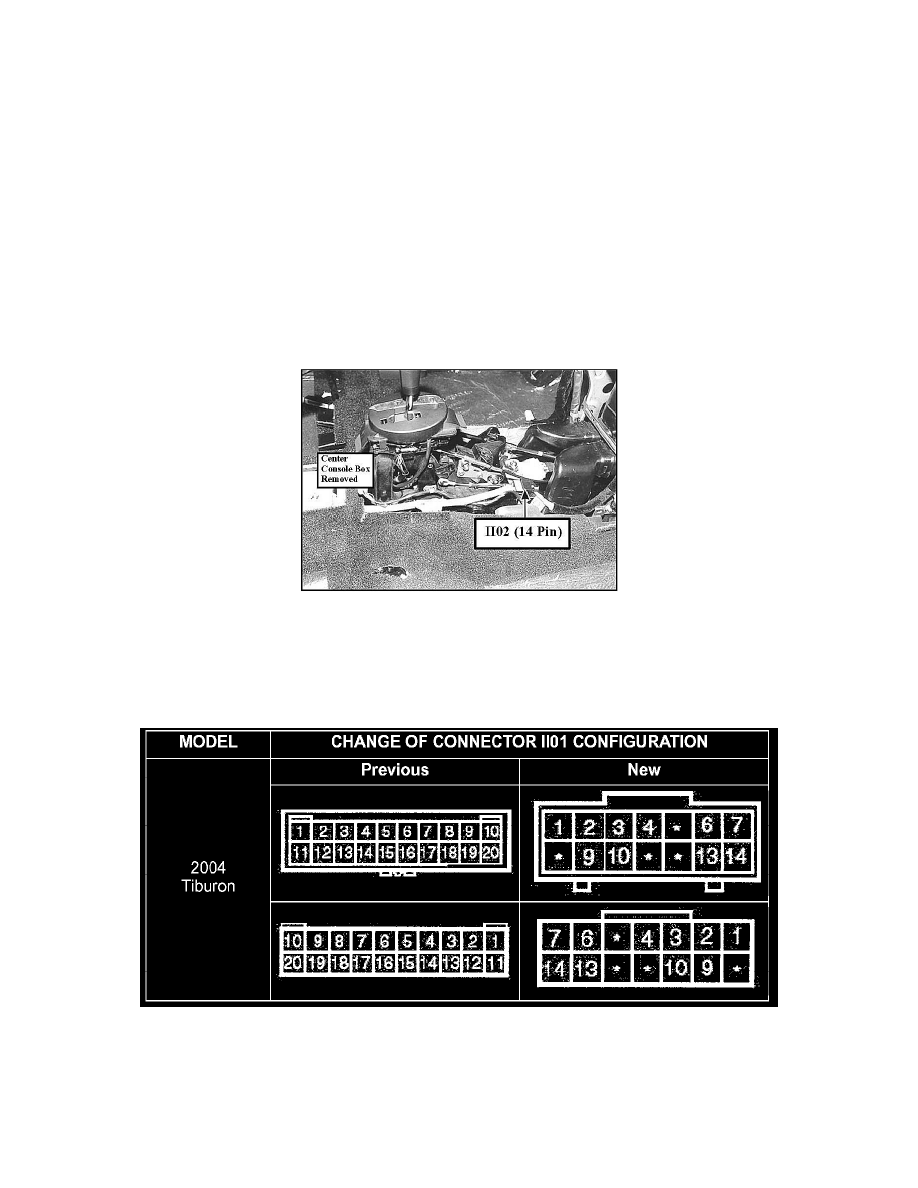

II02
Beginning with December 15, 2003 production vehicles, the airbag wiring connector II01 has been changed from a 20 pin connector to a 14 pin
connector.
This bulletin contains revised schematic diagrams for the airbag system.
NOTE:
II01 = Previous 20 pin connector. II02 = New 14 pin connector is shown.
