Tiburon V6-2.7L (2004)

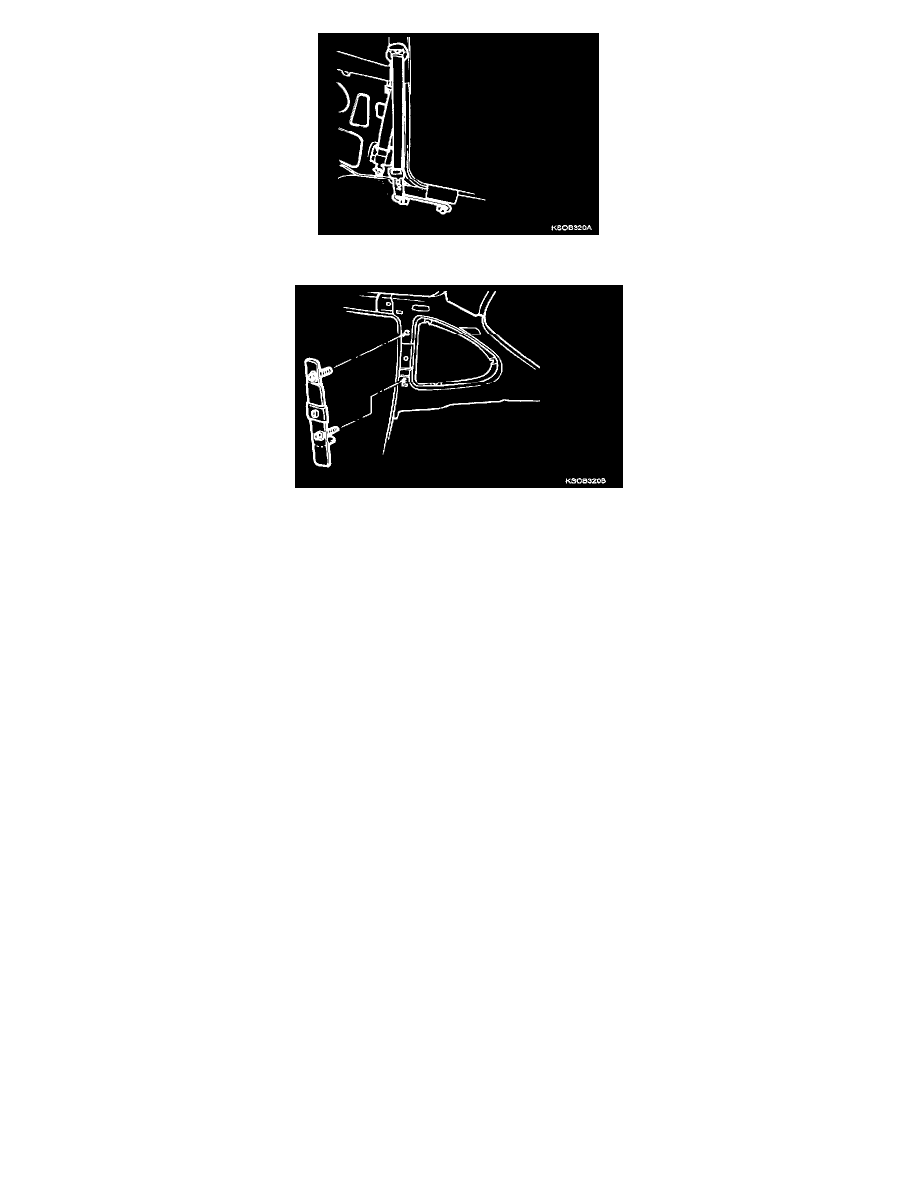

4. Remove the center pillar trim and front seat belt height adjuster.
Tightening torque: 39.2-53.9 N.m (4.0-5.5 kgf.m, 28.9-39.8 lbf.ft)
CAUTION:
1. A pretensioner functions one time only. Be sure to replace the pre-tensioner seat belt after it is deployed.
2. Do not attempt to disassemble or repair the seat belt pretensioner. When it malfunctions, replace with a new pre-tensioner seat belt.
3. Be cautious in handling a pre-tensioner seat belt, and do not drop it in water, or oil. If crushed, damaged, or deformed, replace it with
a newone.
4. Only connect the battery after installation of the pretensioner seat belt has been correctly completed.
5. Removal of the pretensioner seat belt:
-
Make sure that ignition is "Off".
-
Disconnect the negative (-) battery terminal and make sure it does not come into contact with the body.
-
Wait for about 1 minute.
-
Pull the plug out from the appropriate connector at the gas generator.
-
Loosen the bolt and remove the belt from the vehicle body.
