Tiburon V6-2.7L (2004)
Ambient Light Sensor: Testing and Inspection
INSPECTION

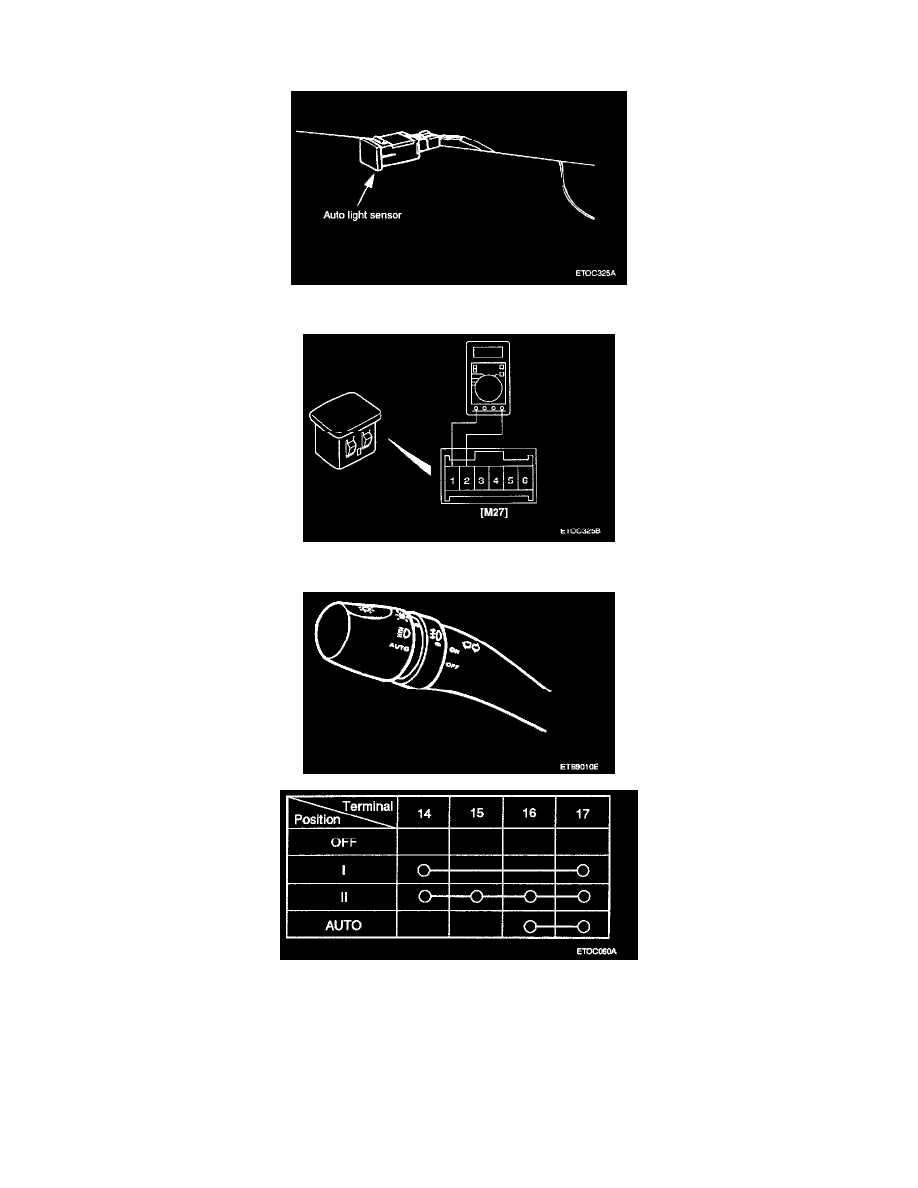

1. Detach the auto light sensor in the upper crash pad.
2. Check the continuity between terminal 2 (+) and terminal 1 (-).
Auto Light Switch [M01-2]
3. Check the continuity between the terminals while operating the switch.
