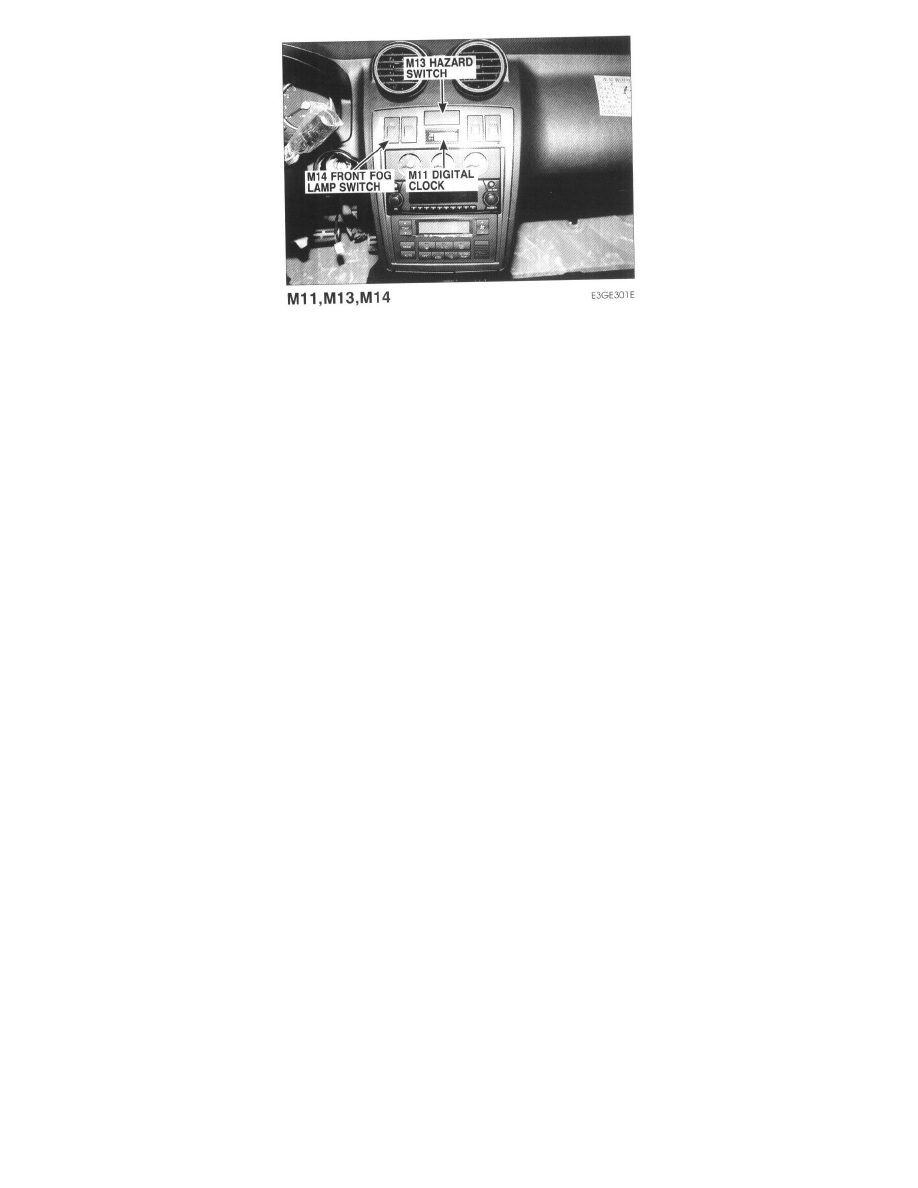

Headlamp Dimmer Switch > < Hazard Warning Switch|Locations
Page 1
background image

Hazard Warning Switch: Testing and Inspection

HAZARD SWITCH

1. Disconnect the negative (-) battery terminal.

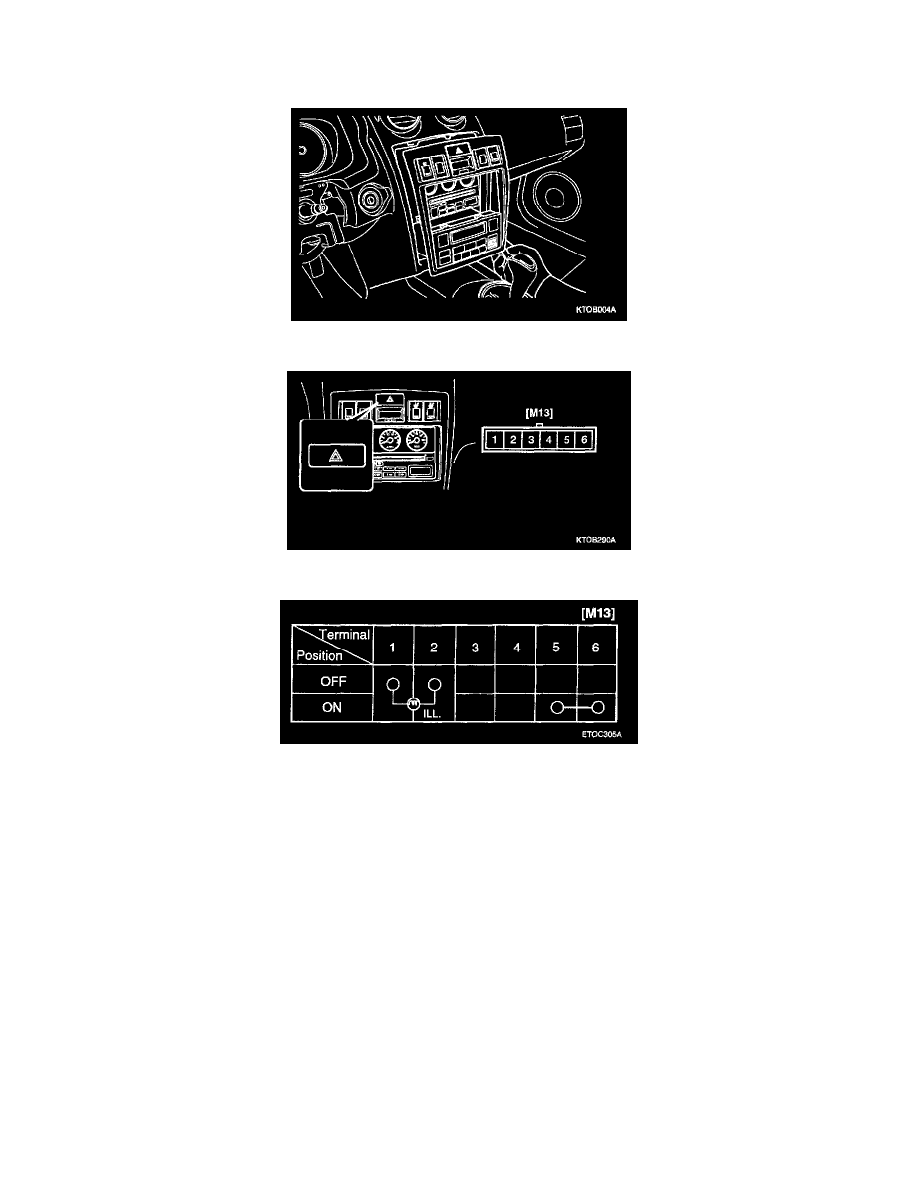

2. Remove the center facia panel with a flat-tip screwdriver.

3. Detach the hazard lamp switch from the center facia panel.

4. Operate the switch and check for continuity between terminals with an ohmmeter.
