Tiburon V6-2.7L (2004)

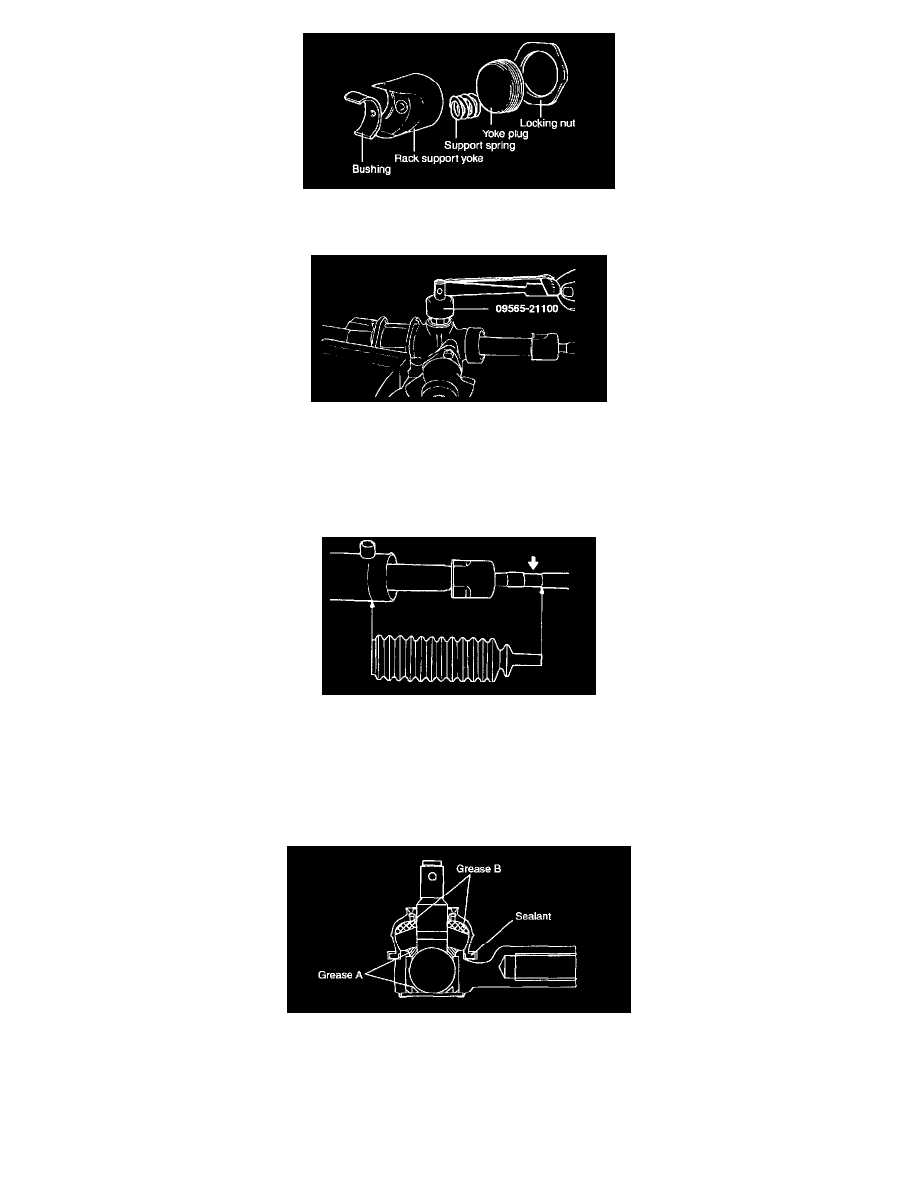

13. Install the bushing, rack support yoke, rack support spring and yoke plug in the order shown in the illustration. Apply semi-drying sealant to the
threaded section of the yoke plug before installation.
14. With the rack placed in the center position, attach the yoke plug to the rack housing. Tighten the yoke plug to 12 Nm (120 kg-cm, 8.9 ft. lbs.),
with a 14 mm socket. Loosen the yoke plug approximately from 30° to 60° and tighten the yoke nut to the specified torque.
Tightening torque..........................50 - 70 Nm (500 - 700 kg-cm, 37 - 52 ft. lbs.)
15. Tighten the feed tube to the specified torque and install the mounting rubber using adhesive.
16. Apply the specified grease to the bellows mounting position (fitting groove) of the tie rod.
Recommended grease: Silicone grease
17. Install the new attaching band to the bellows.
NOTE: When the bellows are installed, a new band must be used.
18. Install the bellows in position, taking care not to twist it.
19. Fill the dust cover inner side and lip with the specified grease, and fix the dust cover in position with the clip ring attached in the groove of the tie
rod end.
Recommended grease
A:.........................POLY LUB GLY 801 K or equivalent
B:.................................SHOWA SUNLIGHT MB2 or equivalent
Dust cover inner side and lip:.........................THREE BOND
