Tiburon V6-2.7L (2004)

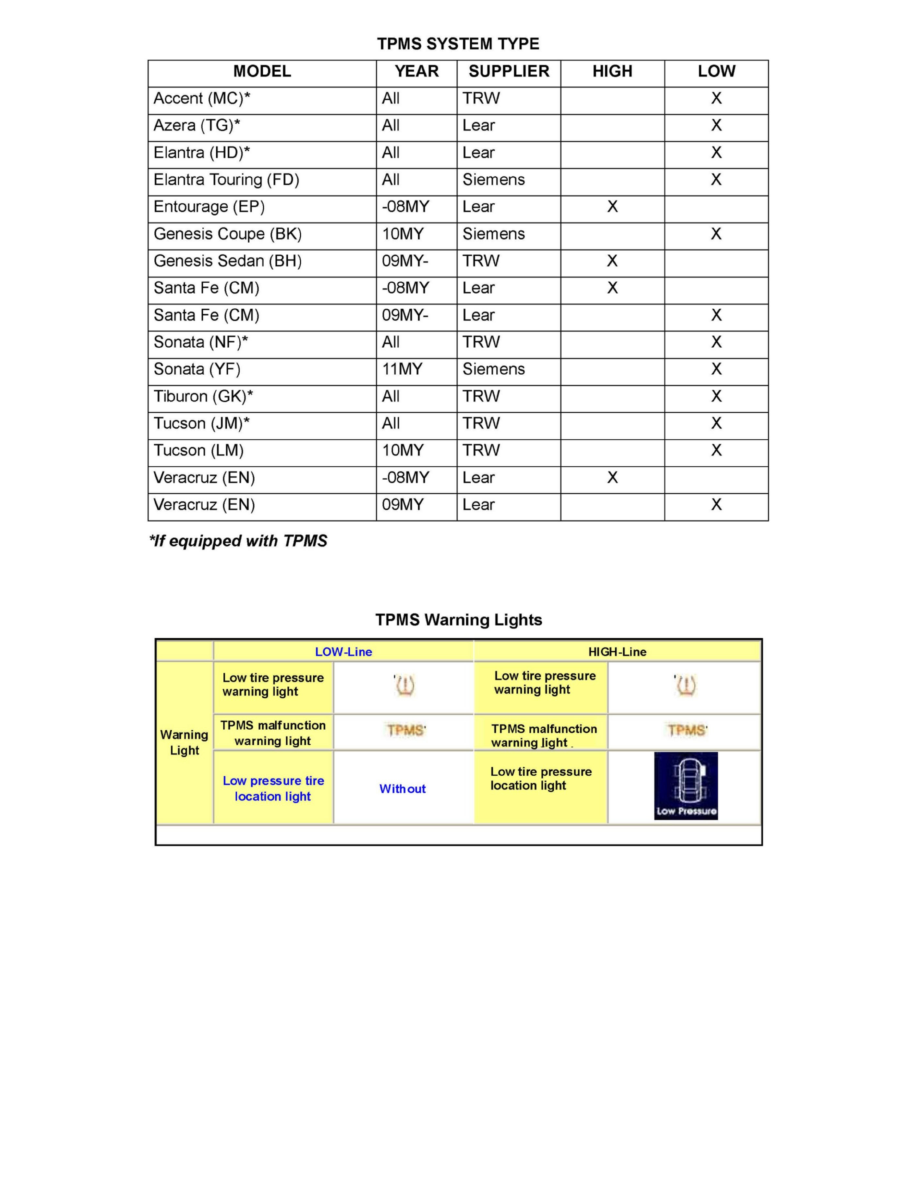

TPMS SYSTEM TYPE
TPMS Warning Lights
NOTE:
LM Tucson, YF Sonata, and 2010 CM Santa Fe do not have the "TPMS" malfunction warning light. Instead, the low tire pressure warning light will
blink for approximately 60 seconds then remain on when there is a system malfunction.
NOTE:
It takes approximately 25 minutes of driving at speed (above 12 mph) for the TPMS malfunction lamp to illuminate if there is a malfunction.
2. Diagnostic Chart
2. TPMS Condition Diagnostic Chart
The following is a list of conditions and the appropriate course of action. For detailed information on repair procedures, see the section Detailed TPMS
Information.
