Tiburon V6-2.7L (2004)
8. Apply the specified grease into the D.O.J boot and install the boot with a clip.
D.O.J. boot grease gr. (2.0L M/T)
Total: 100 - 6
In the joint: 60 - 3
In the boot: 40 - 3
9. Tighten the D.O.J. boot bands.
10. Add the specified grease to the B.J. as much as was wiped away at inspection.
11. Install the boots.
12. Tighten the B.J. boot bands.

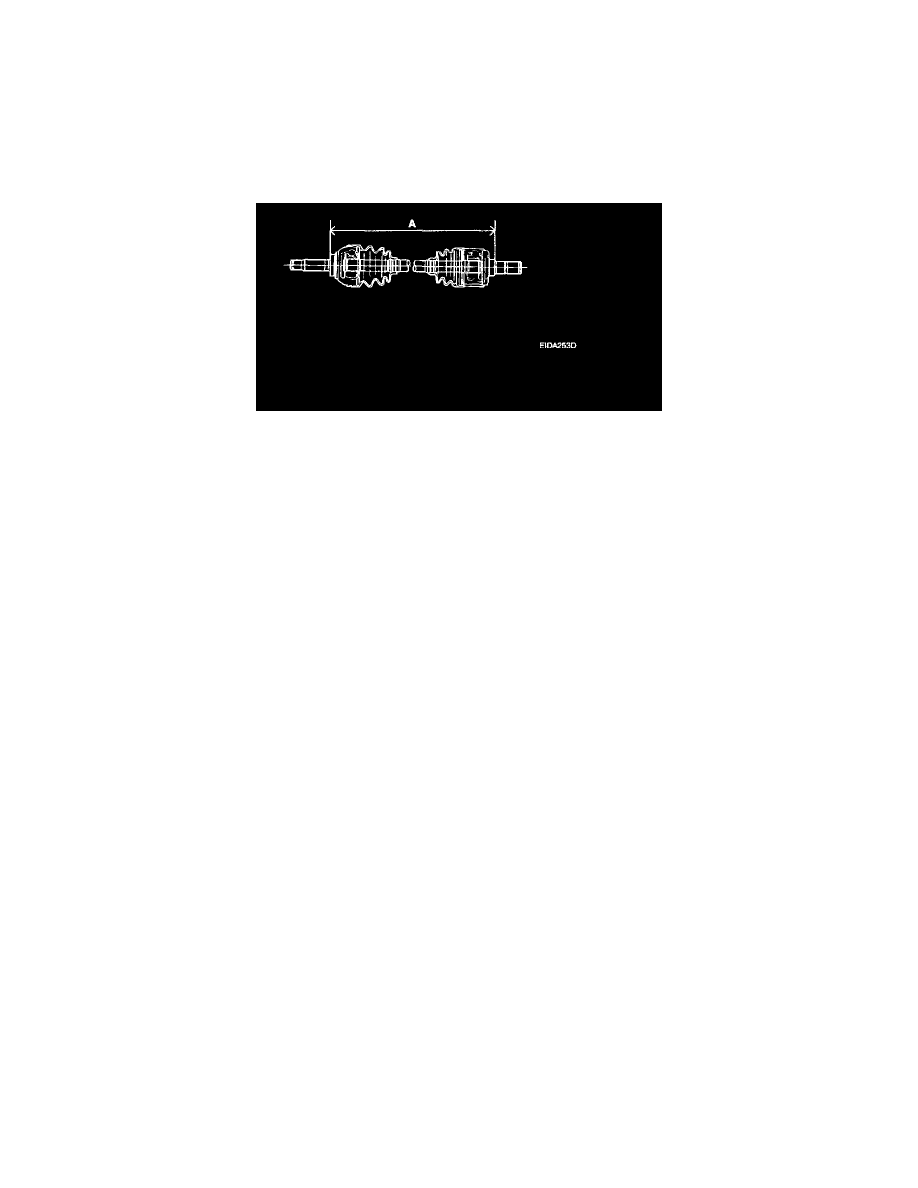

13. To control the air in the D.O.J. boot, keep the specified distance between the boot bands when they are tightened.
Standard value (A) mm (in.)
LH 2.0L M/T: 513.2 - 2 (20.21 - 0.08)
RH 796.2 - 2 (31.35 - 0.08)
Front Driveshaft (T.J-BJ Type)
FRONT DRIVESHAFT (T.J-BJ TYPE)
