Tiburon V6-2.7L (2004)
Recommended lubricant
B.J. Boot grease: CENTOPLEX 278M/1 36K
T.J. Boot grease: KLKTJ41-182 (MS511-50, KOREA KLUBER)
3. To install the dynamic damper, keep the B.J. and driveshaft in a straight line and secure the dynamic damper with the dynamic damper band in the
direction illustrated.
4. Apply grease into the T.J. boot and install the boot.
T.J. boot grease gr. (2.0L A/T, 2.0L 6M/T, 2.7L)
Total: 145 +/- 6
In the joint: 100 +/- 3
In the boot: 45 +/- 3
5. Tighten the T.J. boot bands.
6. Add the specified grease to the B.J. as much as was wiped away at inspection.
7. Install the boots.
8. Tighten the new B.J. boot bands.

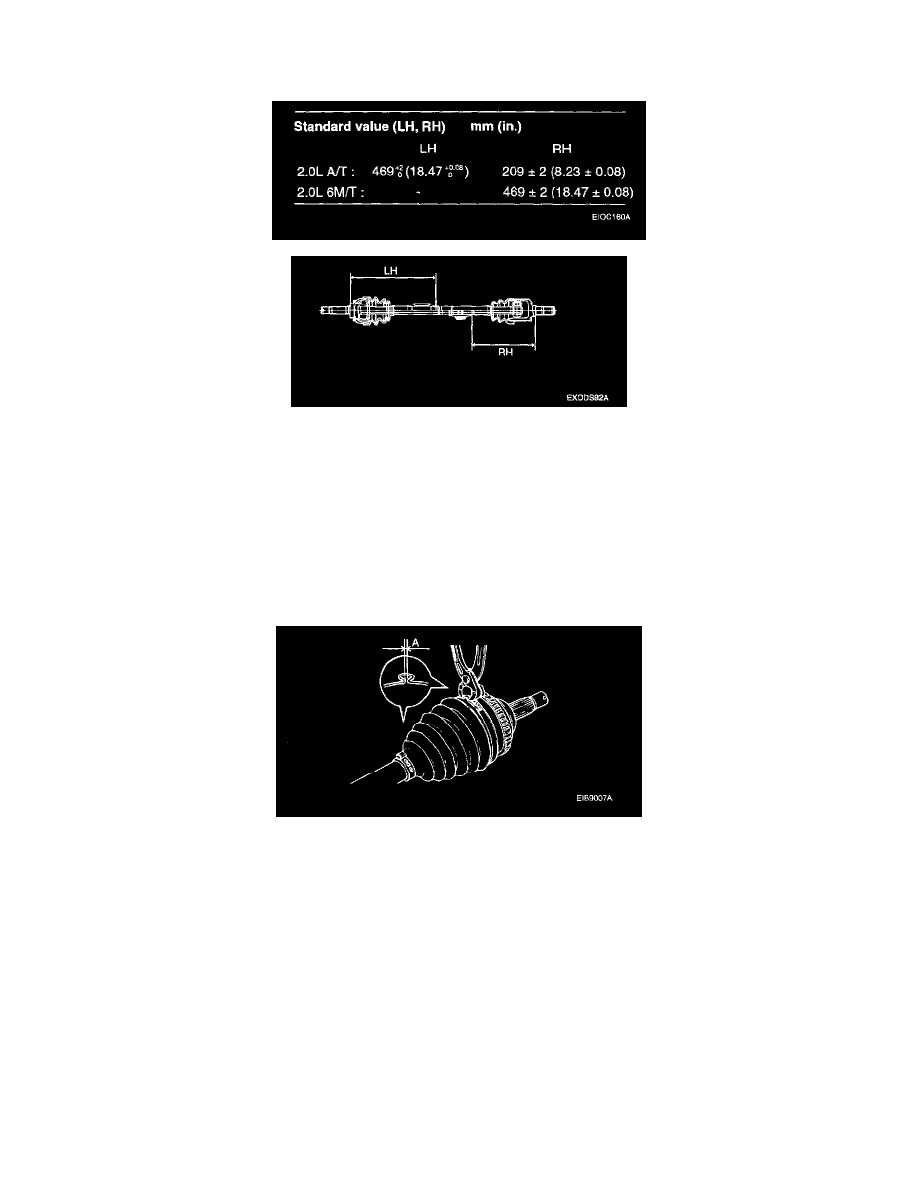

NOTE: Keep the specified distance (A) between the bellows when they are clamped with an Oetiker crimping tool (P/No.: 1094) or a
commercially available hand pincers (2.7L).
Specified distance (A): 1.8 mm (0.071 inch) or less
