Tiburon V6-2.7L (2004)

Page 1
background image

Windshield Washer Switch: Testing and Inspection
Rear

REAR WASHER SWITCH

INSPECTION

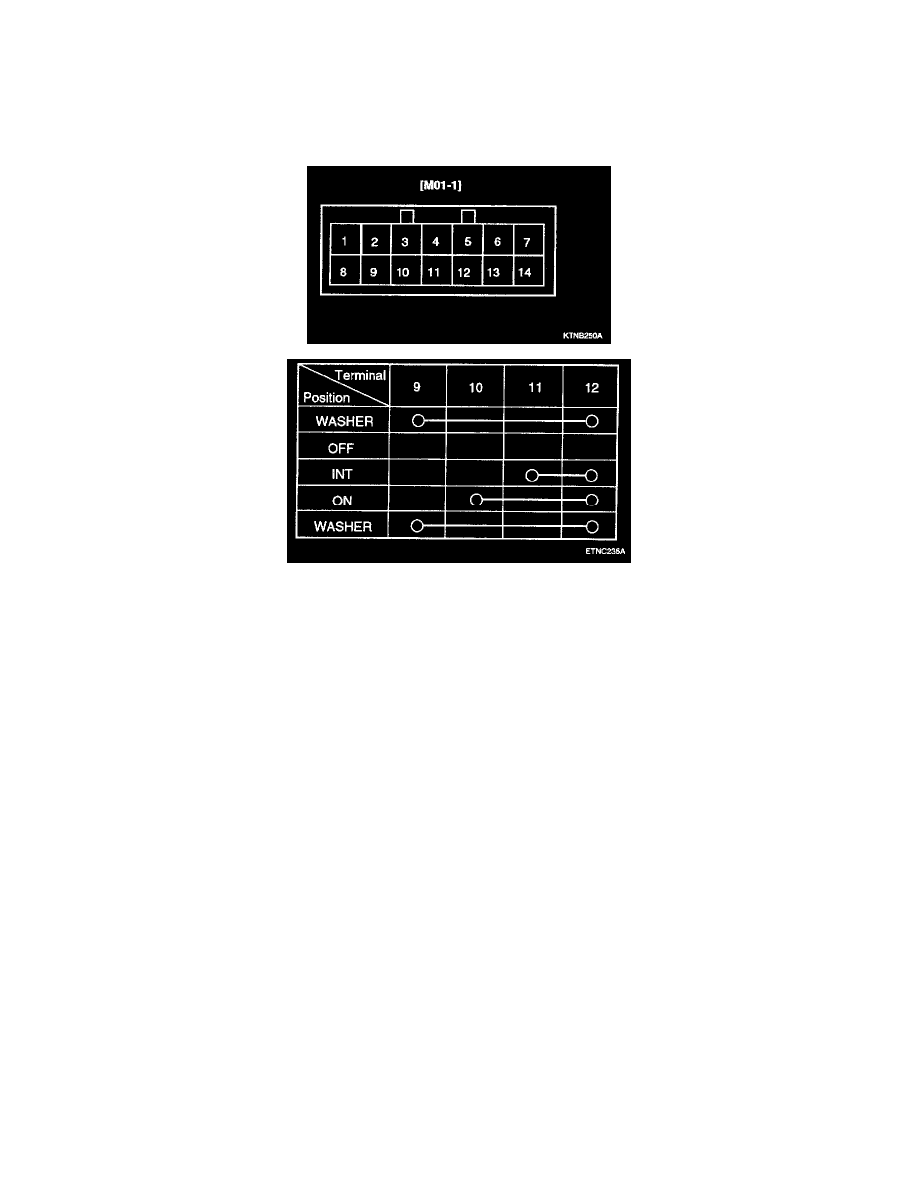

1. Disconnect the connector from the rear wiper and washer switch.

2. Check for continuity between the terminals.
