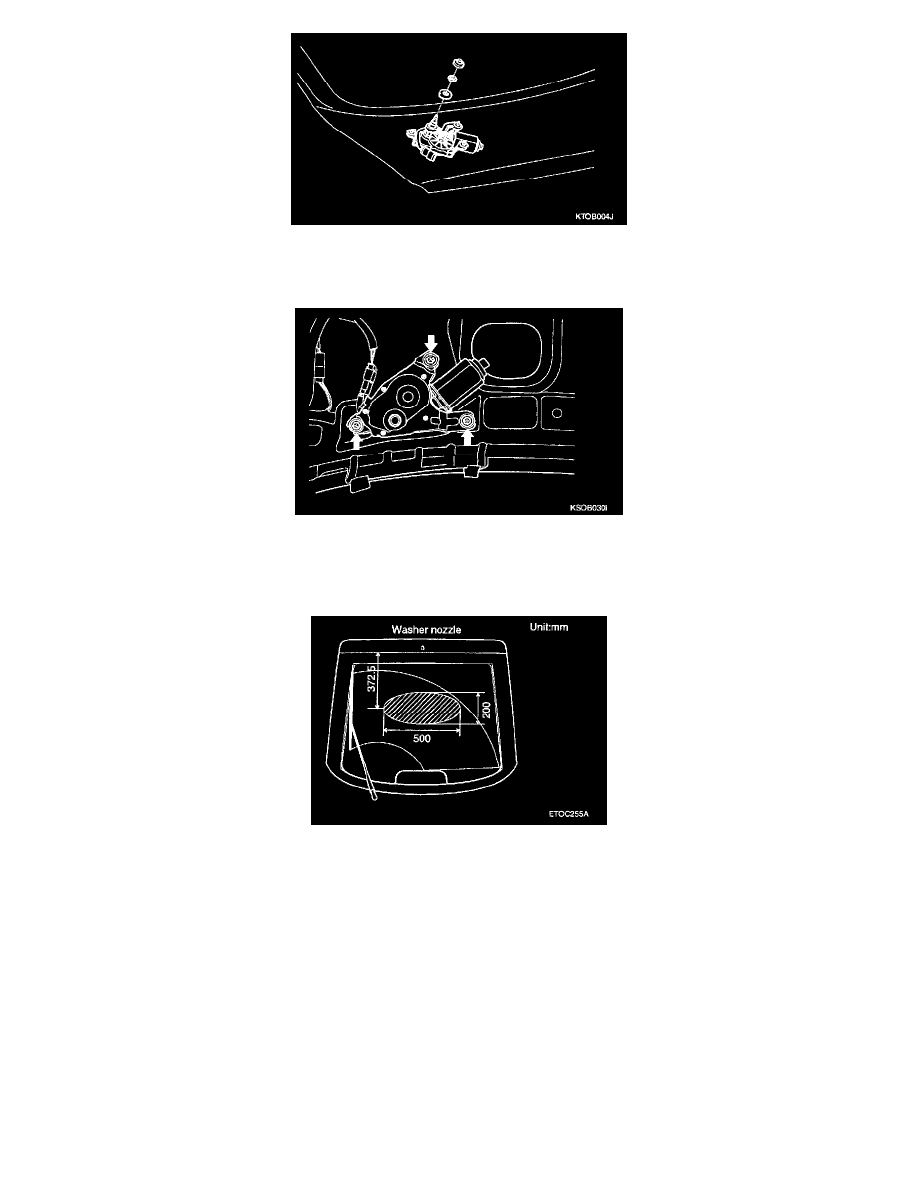

4. Remove the hexagonal nut after removing pivot cover.

Tightening torque:  14 - 17 Nm (140 - 170 kg.cm, 10.3 - 12.5 lb.ft)

5. Remove the rear wiper motor after removing 3 bolts, and disconnect the motor's connector.

INSTALLATION

1. Installation is the reverse of removal.

2. Set the washer nozzle on the specified spray position.
