Tucson FWD L4-2.0L (2007)

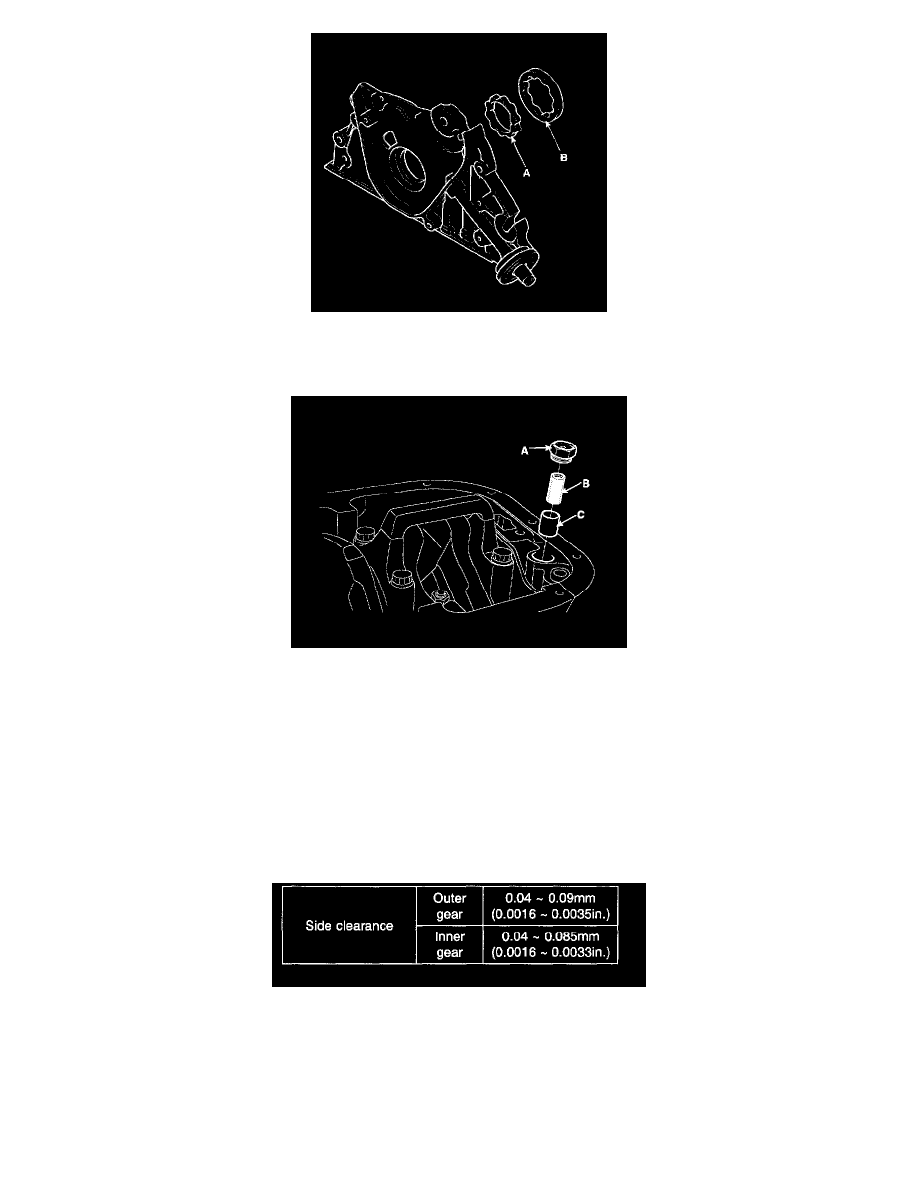

2) Remove the inner(A) and outer(B) rotors.
DISASSEMBLY
1. Remove the relief plunger.
Remove the plug(A), spring(B) and relief plunger(C).
INSPECTION
1. Inspect relief plunger.
Coat the valve with engine oil and check that it falls smoothly into the plunger hole by its own weight.
If it does not, replace the relief plunger. If necessary, replace the front case.
2. Inspect relief valve spring.
Inspect for distorted or broken relief valve spring.
Standard value
Free height: 43.8 mm (1.724 inch)
Load: 3.7±0.4kg/40.1 mm (8.14±0.88lbs./1.579 inch)
