XG 350 V6-3.5L (2002)

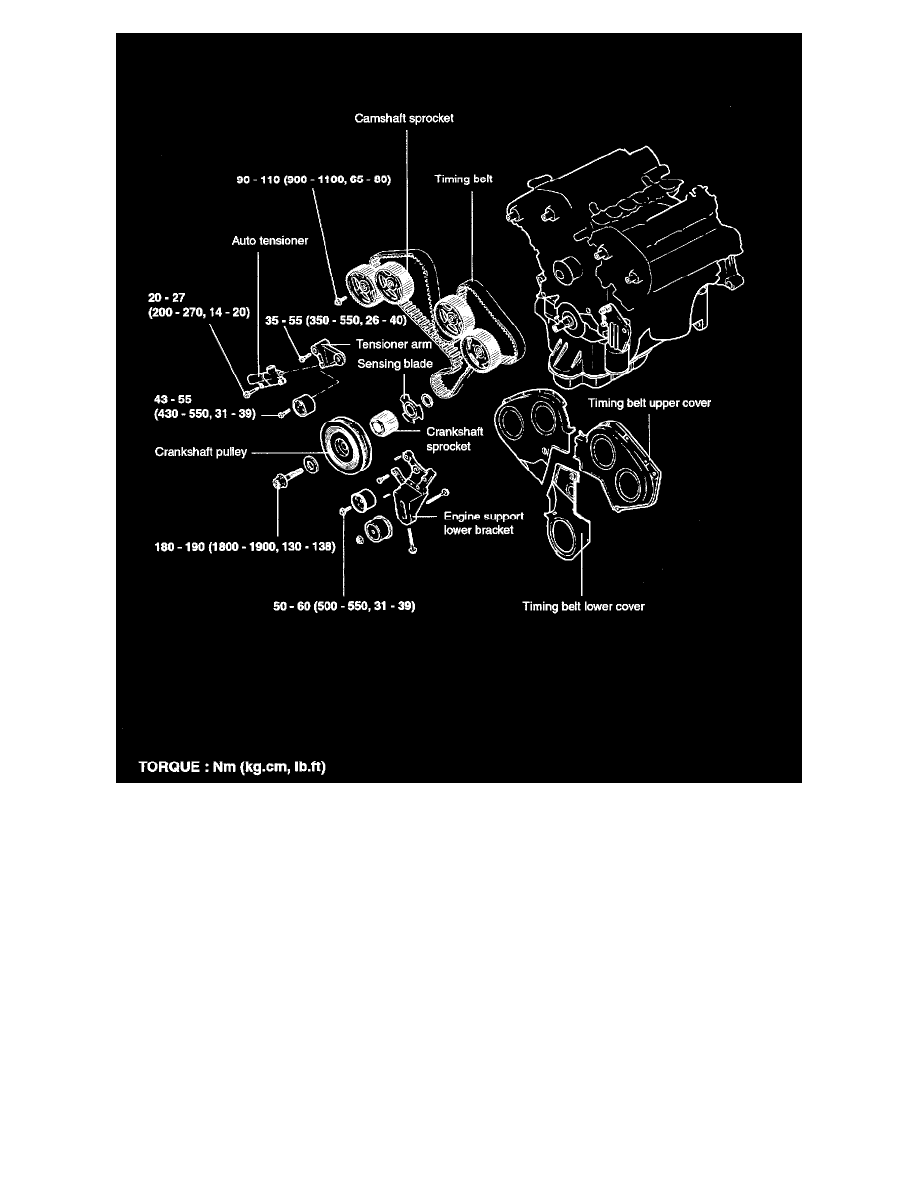

1. Install idler pulley to engine support lower bracket.
2. Install tensioner arm, shaft and plane washer to cylinder block.
Tightening torque 35 - 55 Nm (350 - 550 kg-cm)
3. Install crankshaft sprocket and align the timing mark.
CAUTION: Be careful not to bend crankshaft sensing blade.
