G35 Sedan V6-3.5L (VQ35DE) (2004)

  • Body and Frame
  • Cabin Ventilation Grille
  • Component Information
  • Service and Repair

Page 1
background image

Cabin Ventilation Grille: Service and Repair

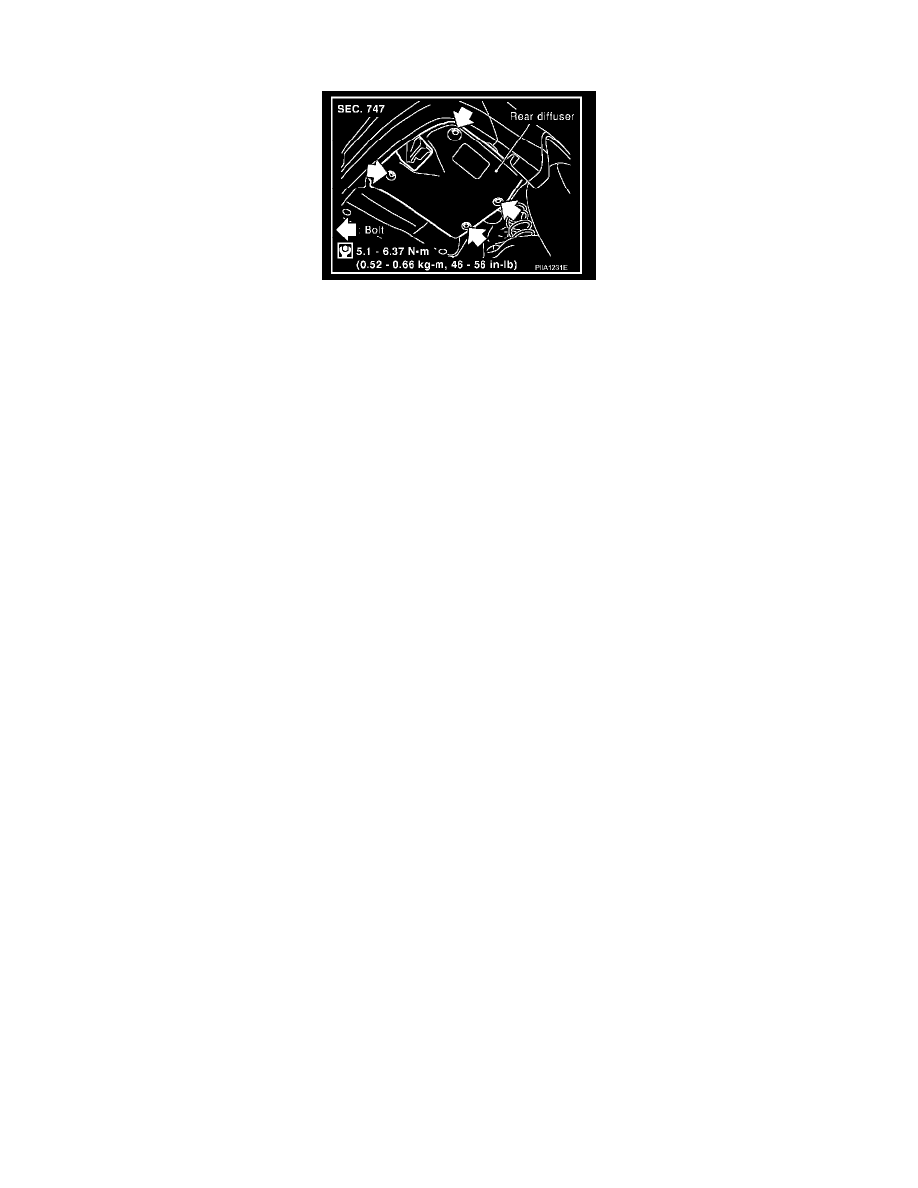

REAR DIFFUSER

Removal and Installation

REMOVAL

1.

Remove bolts of rear diffuser.

2.

Remove rear diffuser.

INSTALLATION

Install in the reverse order of removal.
