G35x Sedan AWD V6-3.5L (VQ35HR) (2007)
/Page-526003.png)

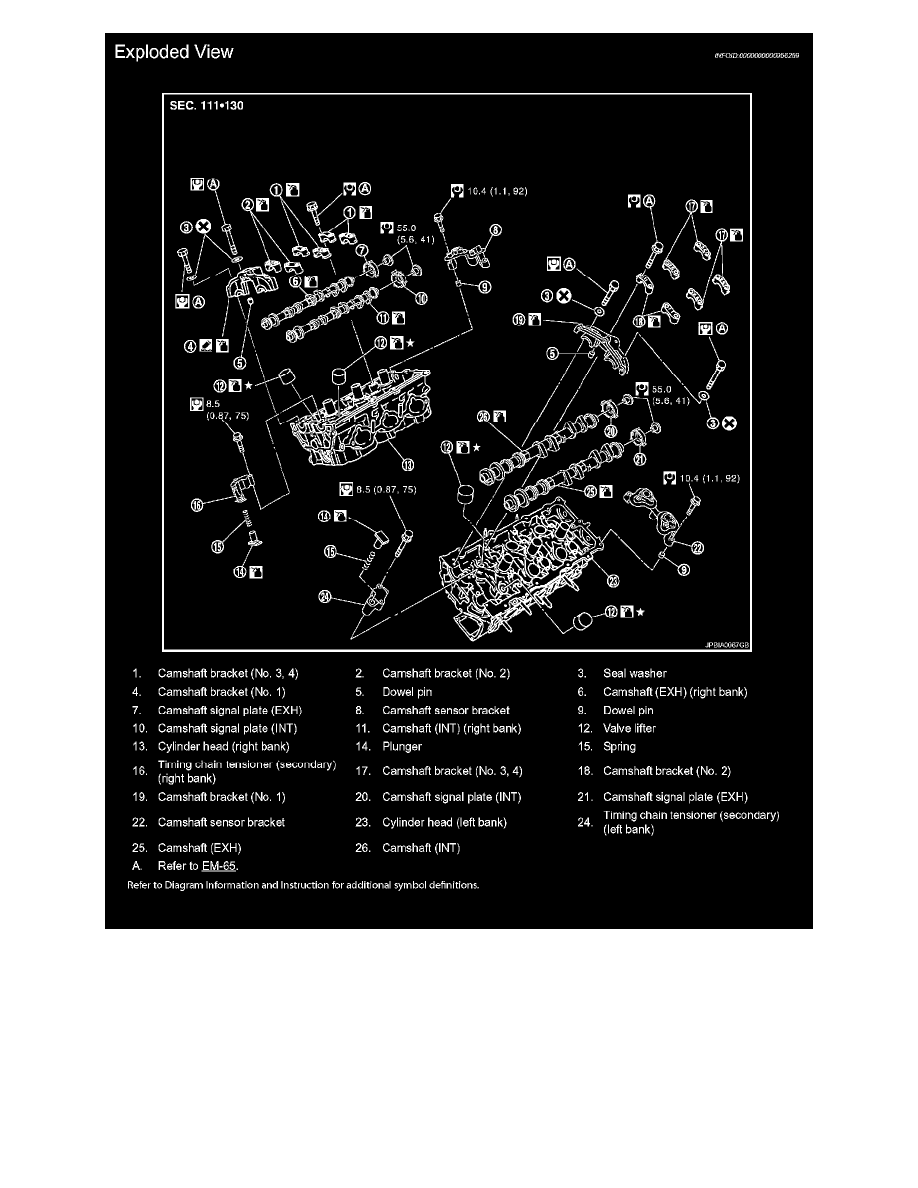

Exploded View EM-65
Removal and Installation
REMOVAL
1. Release the fuel pressure.
2. Disconnect the battery cable from the negative terminal.
3. Remove engine cover with power tool.
4. Remove radiator reservoir tank.
5. Remove air duct and air cleaner case assembly (RH and LH).
6. Remove engine undercover with power tool.
7. Drain engine coolant from radiator.
