Parking Brake Warning Switch: Diagrams (page 2 of 29) – Infiniti J30 V6-2960cc 3.0L DOHC (VG30DE) (1995)

59-78 N m (6.0-8.0 kg-m, 43-58 ft-lb)

^

The captions WARNING and CAUTION warn you of steps that must be followed to prevent personal injury and/or damage to some part of the
vehicle.

WARNING indicates the possibility of personal injury if instructions are not followed.

CAUTION indicates the possibility of component damage if instructions are not followed.

BOLD TYPED STATEMENTS except WARNING and CAUTION give you helpful information.

How to Read Wiring Diagrams

How to Read Wiring Diagrams

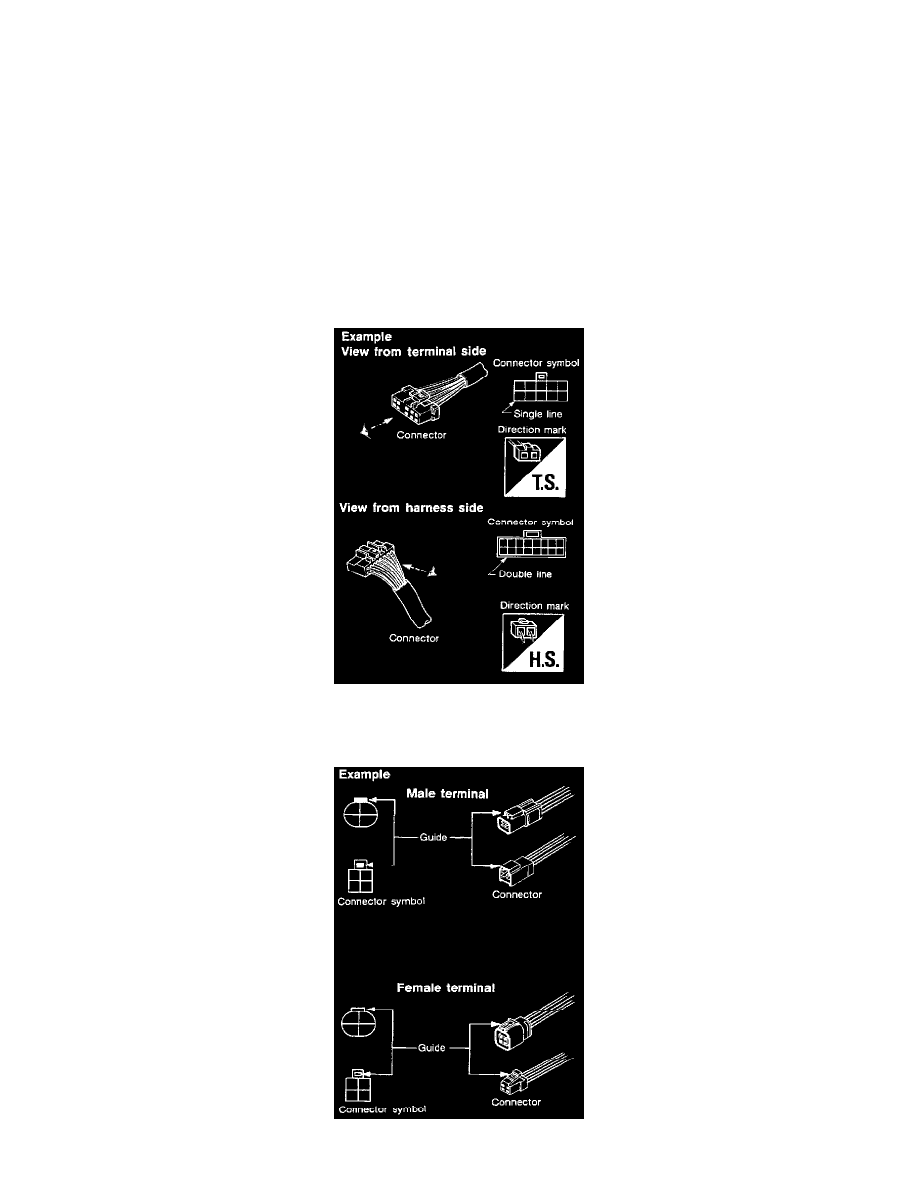

CONNECTOR SYMBOLS

Most of connector symbols in wiring diagrams are shown from the terminal side.

^

Connector symbols shown from the terminal side are enclosed by a single line.

^

Connector symbols shown from the harness side are enclosed by a double line and followed by the direction mark.
