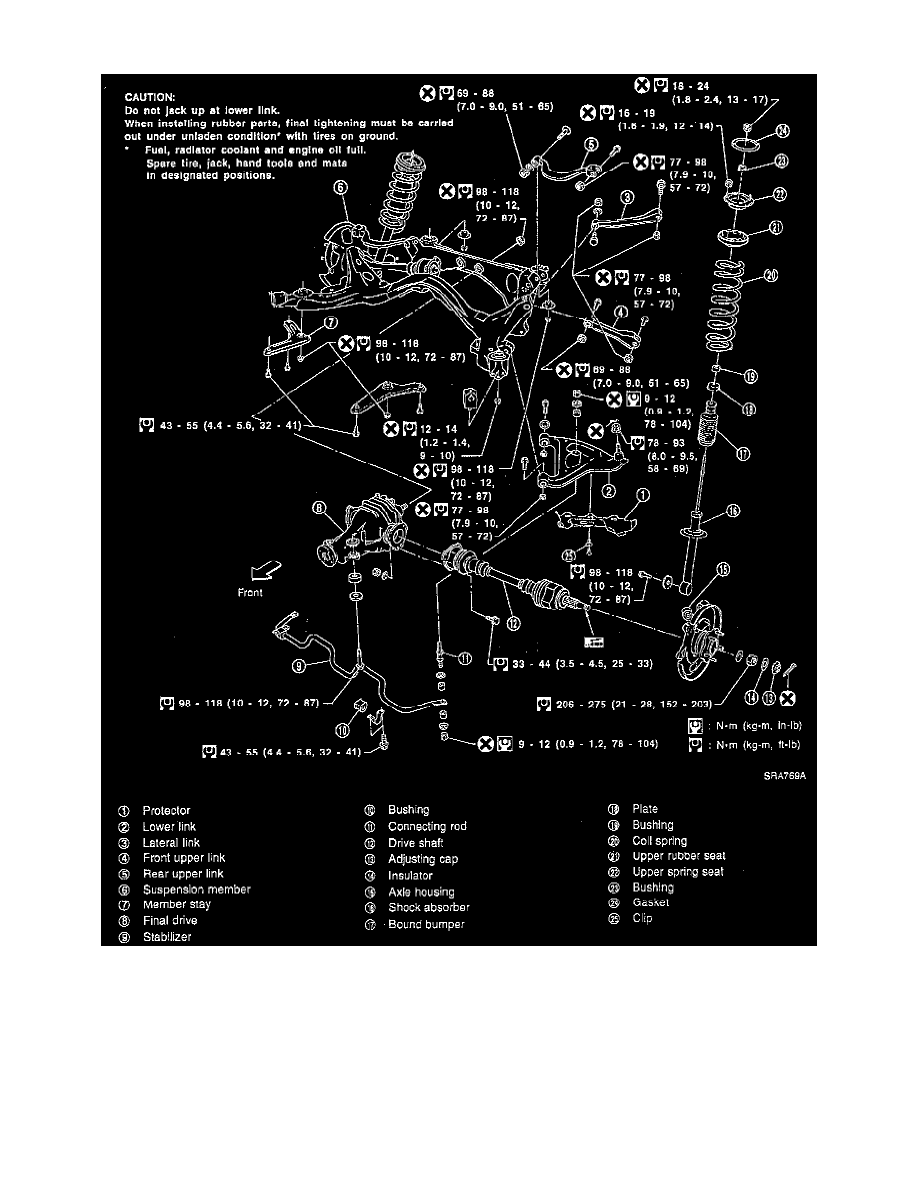

Rear Cross-Member: Service and Repair

CAUTION:  Before removing the rear suspension assembly, disconnect the ABS wheel sensor from the assembly. Then move it away from the rear
suspension assembly. Failure to do so may result in the sensor wires being damaged and the sensor becoming inoperative.
