M30 V6-181 3.0L (1990)
Antenna: Technical Service Bulletins
Power Antenna - Replacement Sleeve
Classification:
EL96-006
Reference:
ITB96-043
Date:
October 2, 1996
POWER ANTENNA SLEEVE
APPLIED VEHICLE:
All
SERVICE INFORMATION

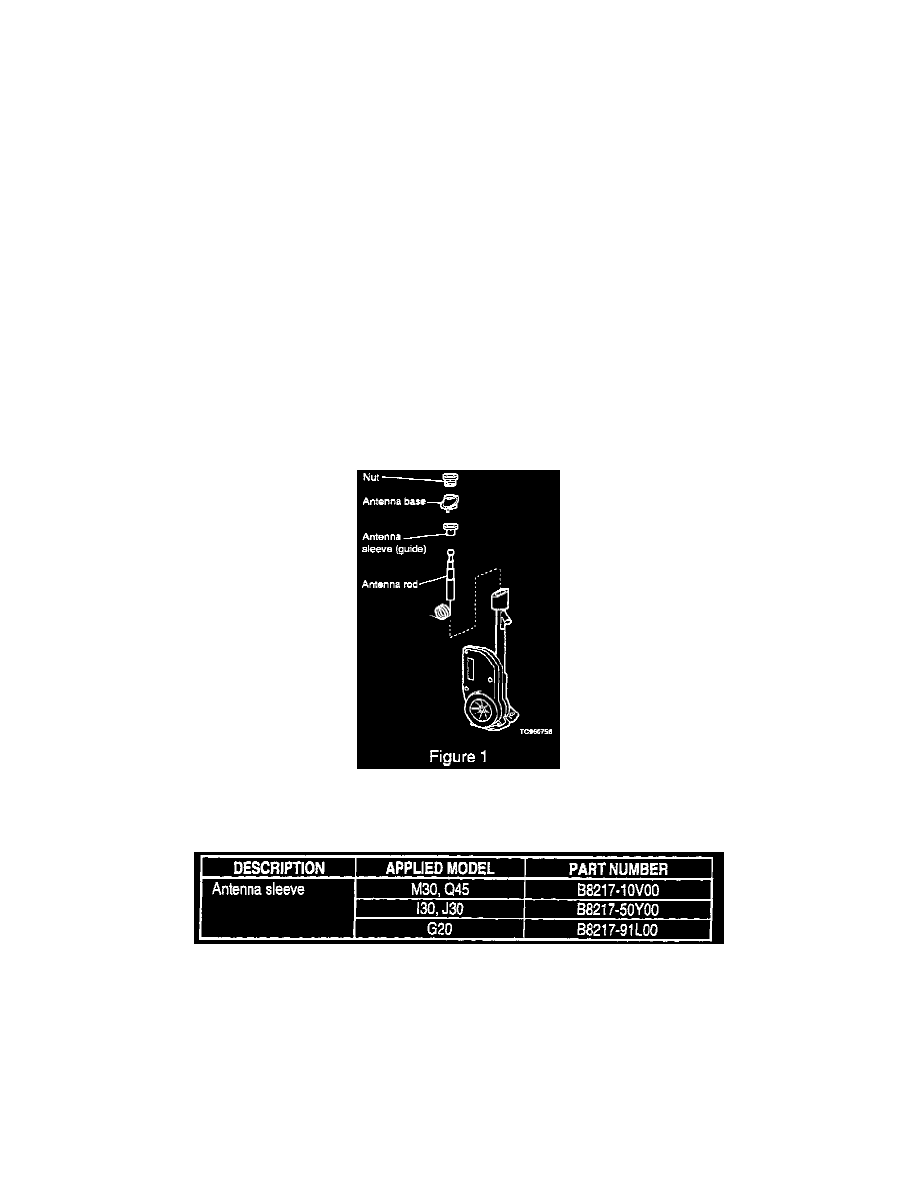

An antenna sleeve (antenna guide) is available as a separate service part to replace bent or corroded antenna sleeves. A complete listing of available
antenna sleeve part numbers is provided in this bulletin.
SERVICE PROCEDURE
1.
Follow the antenna rod removal procedure outlined in "Audio and Power Antenna" located in the EL section of the appropriate service manual.
2.
The antenna sleeve should release from the antenna assembly when the rod is removed. If the antenna sleeve is bound, the rod may not release
after the removal of the nut and base. In this case, use pliers to carefully remove the antenna sleeve (with the radio "OFF"). After the antenna
sleeve is removed, continue with the procedure to remove and replace the antenna rod.
PARTS INFORMATION
CLAIMS INFORMATION
