M30 V6-181 3.0L (1990)
Companion Flange: Technical Service Bulletins
Propshaft - Installation Procedure
Models:
1990 Q45, M30
Section:
Propeller Shaft & Differential Carrier
Classification:
PD90-001
Bulletin No.: ITB90-015
Date:
April 12, 1990
PROPSHAFT INSTALLATION PROCEDURE
APPLIED MODELS: 1990 Infiniti Q45 and M30
SERVICE INFORMATION
When installing or replacing the propshaft, the correct installation and alignment procedure must be followed to ensure proper phasing between the
propshaft and final drive assembly.
NOTE:
If the same propshaft will be re-installed, put matchmarks on the propshaft and its differential companion flange prior to removal.
SERVICE PROCEDURE:
1.

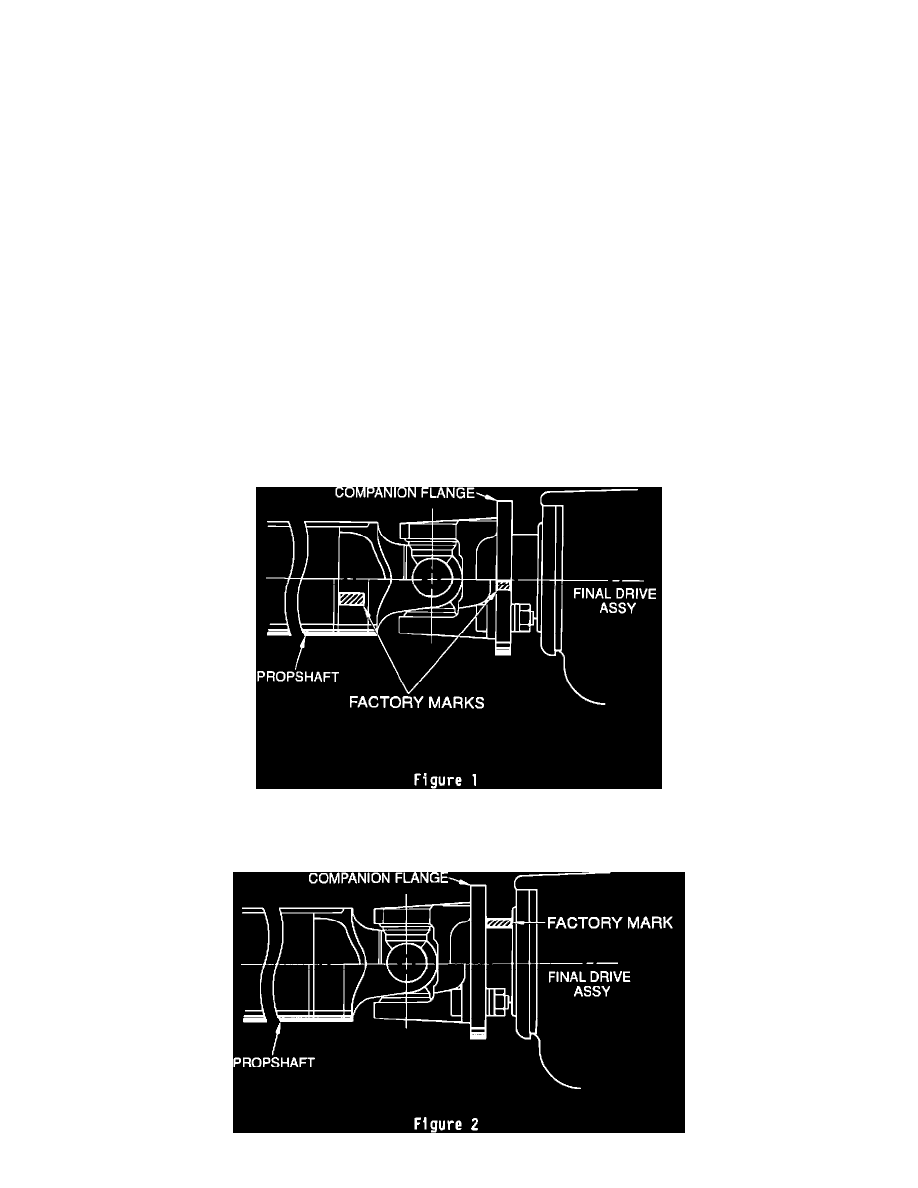

Align (as close as possible) the mark on the propshaft to the mark on its differential companion flange (Factory mark) (Figure 1).
2.
Install attachment nuts/bolts finger tight.
