M35 V6-3.5L (VQ35HR) (2009)
/Page-1138001.png)
Speaker: Service and Repair

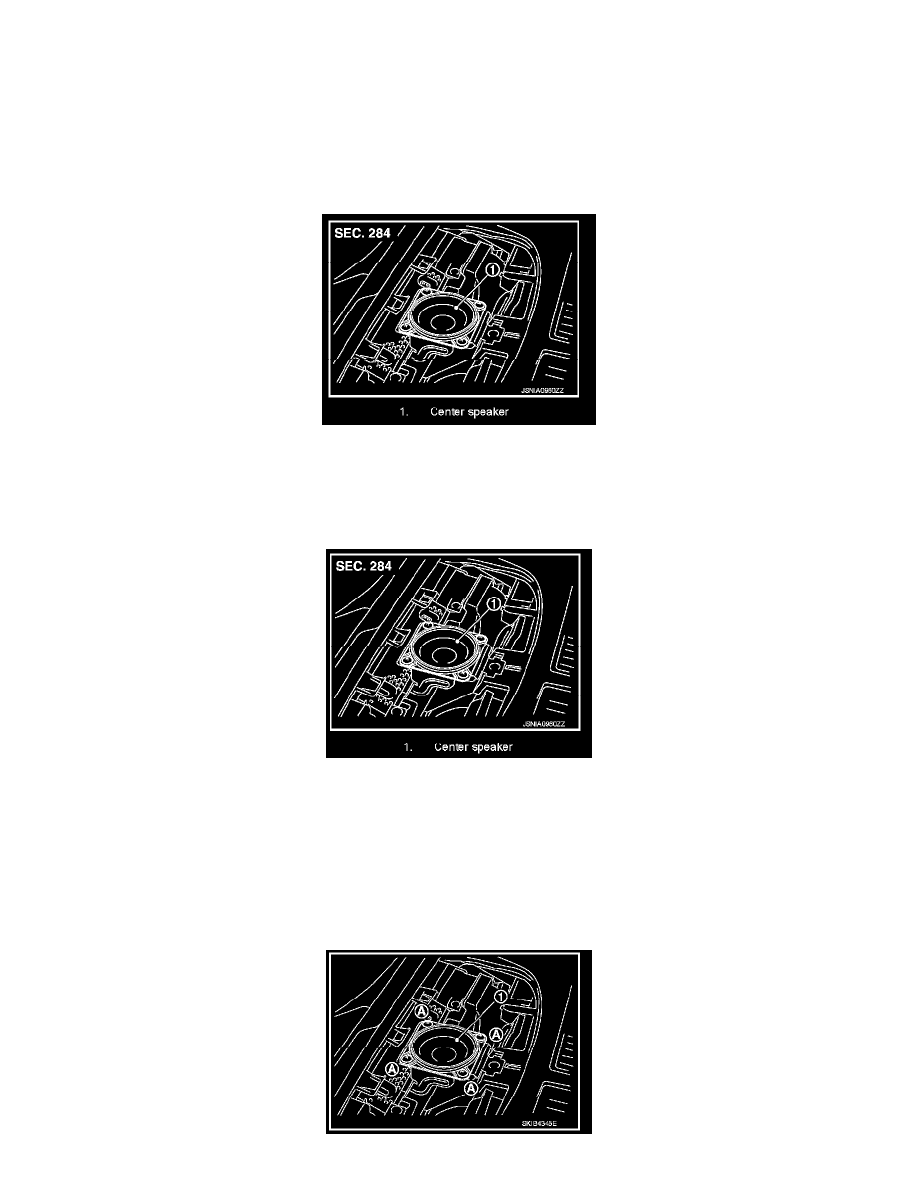

Center Speaker
Without Mobile Entertainment System
CENTER SPEAKER
Exploded View
With Mobile Entertainment System
CENTER SPEAKER
Exploded View
Without Mobile Entertainment System
CENTER SPEAKER
Removal and Installation
REMOVAL
1. Remove upper ventilator grill. Refer to See: Body and Frame/Interior Moulding / Trim/Dashboard / Instrument Panel/Locations/Instrument Panel.
2. Remove screws (A) and disconnect connector.
